| Ill. |
Part Number |
Description |
Remarks |
Info |

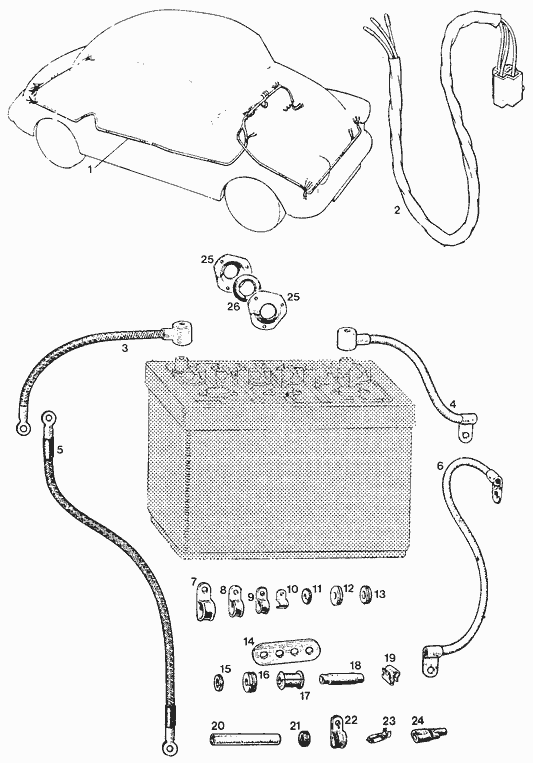

| 1 | WRC101 | Harness |
State type and chassis | |
| | | | number | |
| * | 602037 | Grommet harness through boot | | |
| * | 236366 | Clip - earthing lead head side and flasher lamps | | |
| 2 | WRC103 | Cable - dipswitch | State LHD or RHD | |
| 3 | WRC104 | Cable - battery to starter | | |
| * | GHF2750 | Clamp terminal negative | | |
| 4 | WRC105 | Cable - battery positive to earth | | |
| * | GHF2755 | Clamp terminal positive | | |
| * | ADA6357 | Buffer behind battery | | |
| 5 | WRC106 | Cable - starter switch to starter | | |
| 6 | WRC107 | Cable - engine to earth | | |
| 7 | WRC108 | Clip - harness to valance | | |
| 8 | WRC109 | Clip - harness to dash | | |
| 9 | WRC110 | Clip - number plate lamp cable (Boot-lid) | | |
| 10 | WRC111 | Clip - petrol gauge cable to dash | | |
| 11 | WRC112 | Grommet - petrol pump lead | | |
| 12 | WRC113 | Grommet - spare wheel floor | | |
| 13 | WRC114 | Grommet - headlamp wires | | |
| 14 | WRC115 | Spacer - HT cables | | |
| 15 | WRC116 | Grommet - trafficator switch cable | | |
| 16 | WRC117 | Grommet - tail lamp cable | Saloons and convertible | |
| 17 | WRC118 | Ferrule - rear lamp cable | Traveller | |
| 18 | WRC119 | Connector - horn feed and earth leads | | |
| 19 | WRC120 | Clip - number plate lamp | Boot-lid | |
| 20 | WRC121 | Sleeve - tail lamp cable | Saloons and convertible | |
| 21 | WRC122 | Grommet - tail lamp cable | Traveller | |
| 22 | WRC123 | Clip - rear lamp cable | Traveller | |
| 23 | WRC124 | Connector - Lucar | | |
| 24 | WRC125 | Insulator - connector socket | | |
| 25 | WRC126 | Cap - grommet retainer to dash | | |
| 26 | WRC127 | Grommet | | |
| | | | | |
| * | WRC128 | Bullet connector male | | |
| * | WRC119 | Connector single line female | | |
| * | WRC119A | Connector double line female | | |
| * | WRC119B | Connector triple line female | | |
| Ill. |
Part Number |
Description |
Remarks |
Info |

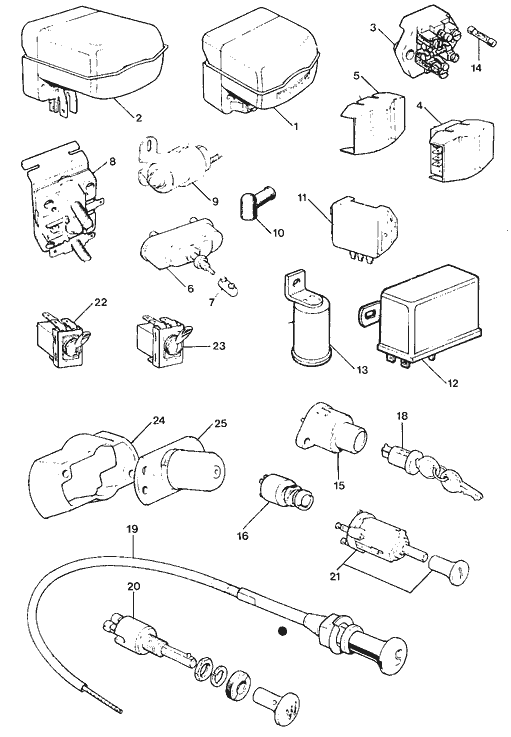

| 1 | SWH101 | Regulator box assembly |
Screw terminals | |
| 2 | SWH102 | Regulator box assembly | Lucar connectors | |
| 3 | SWH103 | Fusebox assembly | Screw terminals | |
| 4 | SWH104 | Fusebox assembly | Lucar connectors | |
| 5 | SWH105 | Cover | | |
| 6 | SWH106 | Switch - starter | | |
| 7 | SWH107 | Coupling - starter switch to control | | |
| 8 | SWH108 | Switch - starter solenoid | | |
| 9 | | Switch - starter solenoid | Use SWH108 | |
| 10 | SWH109 | Cap - terminal insulating | | |
| 11 | SWH110 | Regulator box | For alternator only | |
| 12 | SWH111 | Relay | For alternator only | |
| 13 | SWH112 | Warning light control | For alternator only | |
| 14 | SWH113 | Fuse - 35 amp | | |
| 15 | SWH114 | Switch - ignition | | |
| 16 | SWH115 | Switch - ignition - starter | | |
| 18 | SWH117 | Lock assembly - ignition | | |
| 19 | SWH118 | Control assembly - starter | 803cc - brown knob | |
| | SWH119 | Control assembly - starter | 948cc - black knob | |
| 20 | SWH120 | Switch - windscreen wiper | 803cc - brown knob | |
| * | AHH5364 | Knob for SWH120 | | |
| | SWH121 | Switch - windscreen wiper | 948cc - black knob | |
| * | AHH5360 | Knob for SWH121 | | |
| 21 | SWH122 | Switch - lighting | 803cc - brown knob | |
| | SWH123 | Switch - lighting | 948cc - black knob | |
| 22 | SWH124 | Switch - windscreen wiper | 1098cc | |
| 23 | SWH125 | Switch - lighting | 1098cc | |
| 24 | SWH126 | Packing - dipper switch | | |
| 25 | SWH127 | Switch - dipper | | |
| * | PMZ306 | Screw for SWH127 | | |
| * | SWH127A | Switch dipper late type | | |
| | | | | |
| * | 3H3100 | Switch lamps instrument | | |
| * | SWH201 | Switch windscreen washer | | |
