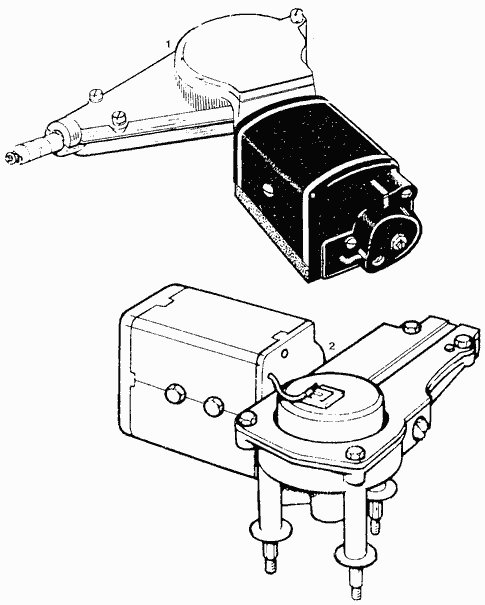

Wiper Motor
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | WPR101 | Motor - windscreen wiper 803cc | ||
| 2 | WPR102 | Motor - windscreen wiper - 110° angle of wipe 948cc* | ||
| WPR103 | Motor - windscreen wiper - 100° angle of wipe 948cc* | |||
| WPR104 | Motor - windscreen wiper - 150° angle of wipe 1098cc | |||
| * No chassis number changes are available, so it is | ||||
| very important that you quote all the numbers that | ||||
| are stamped on your old wiper motor | ||||
| * | 17H5396 | Brush set for wiper motor | ||
| * | 17H5431 | Rubber mounts for wiper motor | ||
| * | 17H2457 | Gear 100° | ||
| * | 57H5592 | Gear 150° | ||
| * | 508170 | Brush wiper motor | ||
| * | 741583 | Bracket with rubber mounts for old wiper | ||
| motor behind glove box | ||||
| * | CHS300 | Bracket on wheel arch for wiper motor |

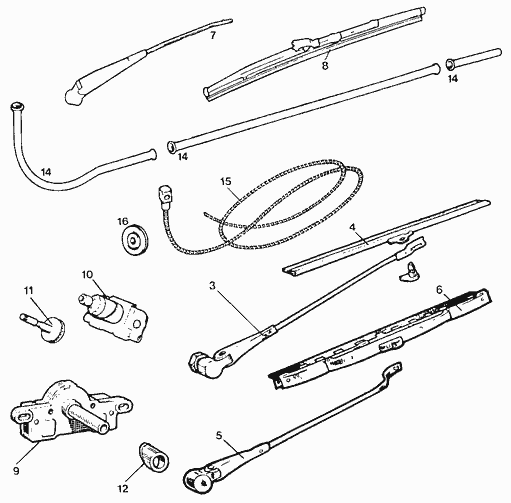

Wiper Arm
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 3 | WPR105 | Arm - windscreen wiper RH | 803cc | |
| WPR106 | Arm - windscreen wiper LH | |||
| 4 | WPR107 | Blade | 803cc | |
| * | WPR901 | rubber peg for WPR107 | ||
| 5 | WPR108 | Arm - windscreen wiper RH | 948cc | |
| WPR109 | Arm - windscreen wiper LH | |||
| 6 | WPR110 | Blade | 948cc | |
| 7 | WPR111 | Arm - windscreen wiper RH/LH | 1098cc | |
| 8 | WPR112 | Blade | 1098cc | |
| 9 | WPR113 | Wheelbox | 803cc | |
| 10 | WPR114 | Wheelbox | 948cc | |
| * | WPR114A | Wheel | 948cc | |
| WPR115 | Wheelbox | 1098cc | ||
| * | WPR119A | Rubber gasket for wheelbox | ||
| 11 | WPR116 | Spindle and gear | 948cc | |
| WPR117 | Spindle and gear | 1098cc | ||
| 12 | WPR118 | Finisher | 803cc | |
| WPR119 | Finisher | 948cc and 1098cc | ||
| 14 | WPR120 | Guide - rack | 948cc and 1098cc | |
| 15 | WPR121 | Cross-head and rack | 948cc and 1098cc | |
| WPR122 | Cross-head and rack | 803cc | ||
| 16 | WPR123 | Grommet - rack guide |

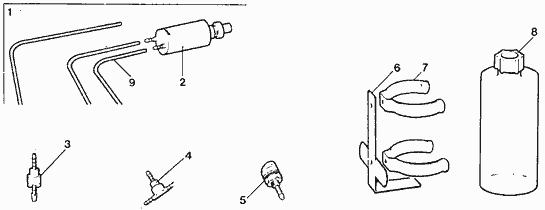

Washer
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | SCW101 | Kit - assembly - windscreen washer | ||
| 2 | SCW102 | Pump - washer | ||
| 3 | SCW103 | Valve - bottle end | ||
| 4 | SCW104 | 3-way connector | ||
| 5 | SCW105 | Jet | ||
| 6 | SCW106 | Bracket - bottle carrier | ||
| 7 | SCW107 | Clip - spring - bracket | ||
| 8 | SCW108 | Bottle | ||
| 9 | SCW109 | Pipe |
