Front & Side Lamps

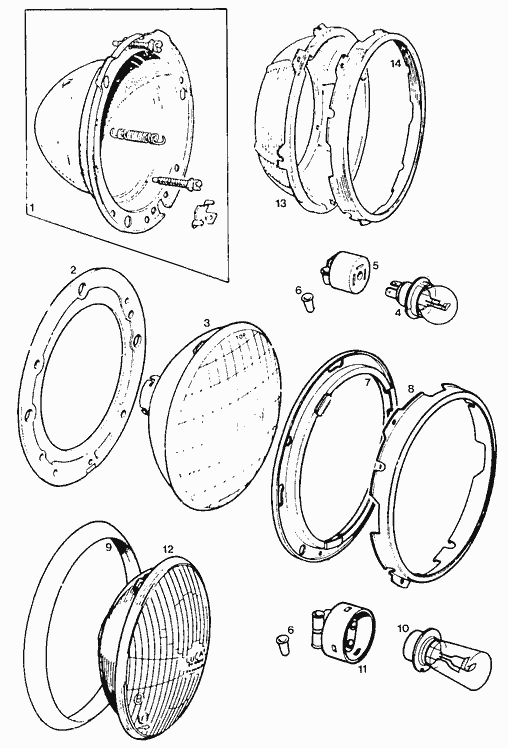

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | LMP151 | Bucket | 3 adjusting screws | |
| * | 17H5394K | Kit adjuster headlamp 3 adjuster screws | ||
| LMP160 | Bucket | 2 adjusting screws | ||
| * | LMP902 | Kit adjuster headlamp 2 adjuster screws | ||
| * | 37H7421A | Clip headlamp rim | ||
| * | CDU4056 | Spire | / AK606021 | |
| 2 | LMP152 | Gasket | ||
| 3 | LMP153 | Unit - light | ||
| 4 | BLB410 | Bulb - 3-pin | ||
| 5 | LMP154 | Adaptor | ||
| 6 | LMP108 | Connector | ||
| * | 236366 | Connector wiring to earth double | ||
| 7 | LMP155 | Plate | 3 adjusting screws | |
| 8 | LMP156 | Rim | 3 adjusting screws | |
| * | 3H2962 | Rubber ring seal for LMP156 | ||
| 9 | LMP157 | Bezel | ||

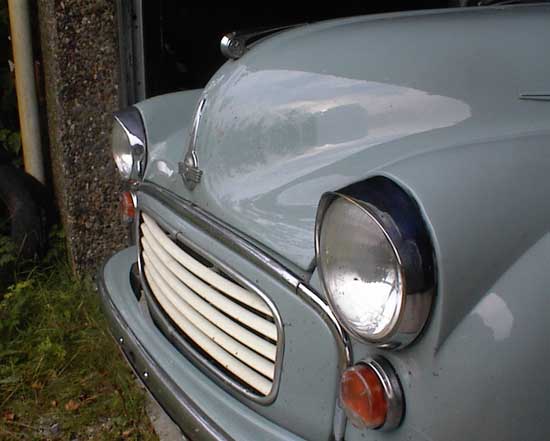

| LMP157A | Bezel - special | Photo | ||
| * | RTC465 | Screw for LMP157 | ||
| 10 | BLB414 | Bulb - bayonet fitting | ||
| 11 | LMP158 | Adaptor | ||
| * | BAU2110 | Adaptor with wiring for late head lamp | ||
| 12 | BLB114 | Unit - light - sealed beam | ||
| 13 | LMP159 | Plate | 2 adjusting screws | |
| * | 17H5277 | Spring LMP159 to bucket | ||
| 14 | LMP160A | Rim | 2 adjusting screws | |
| * | AB606021 | Screw for LMP160A | ||
| LMP900 | Headlamp assembly | |||
| Complete (less LMP157) |

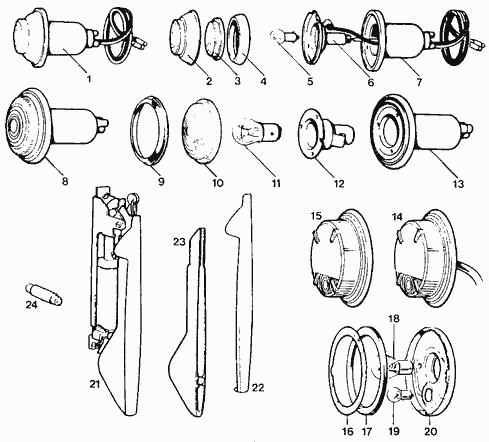

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | LMP132 | Lamp assembly - side | 803cc and early 948cc | |
| 2 | LMP133 | Bezel assembly | ||
| 3 | LMP134 | Glass | ||
| 4 | LMP135 | Bezel | ||
| 5 | BLB989 | Bulb | ||
| 6 | LMP136 | Bulbholder assembly | ||
| 7 | LMP137 | Body | ||
| 8 | LMP138 | Lamp assembly - side and flasher | later 948cc | |
| * | AAA2202 | Plate backing | ||
| 9 | LMP102 | Bezel | ||
| 10 | LMP139 | Lens | ||
| 11 | BLB380 | Bulb | ||
| 12 | LMP140 | Bulbholder assembly | ||
| 13 | LMP113 | Body | ||
| 14 | LMP170 | Lamp assembly - side-light/indicator | ||
| * | LMP174A | Gasket LMP170 to wing | ||
| * | LMP174B | Gasket kit for LMP170 | ||
| * | PMZ308 | Screw LMP170 to wing | ||
| 15 | LMP171 | Lens assembly | ||
| 16 | LMP172 | Ring - sliding | ||
| 17 | LMP173 | Gasket - lens seating | ||
| 18 | BLB382 | Bulb - flasher | ||
| 19 | BLB989 | Bulb - side lamp | ||
| 20 | LMP174 | Base | ||
| * | 244700A | Interior bulb holder - side lamp | ||
| * | 37H5452 | Interior bulb holder - flasher | ||
| 21 | LMP175 | Trafficator assembly | ||
| 22 | LMP176 | Arm | ||
| 23 | LMP177 | Cover | ||
| 24 | BLB256 | Bulb | ||
| * | AAA2202 | Plate for side lamp rubber boot | ||

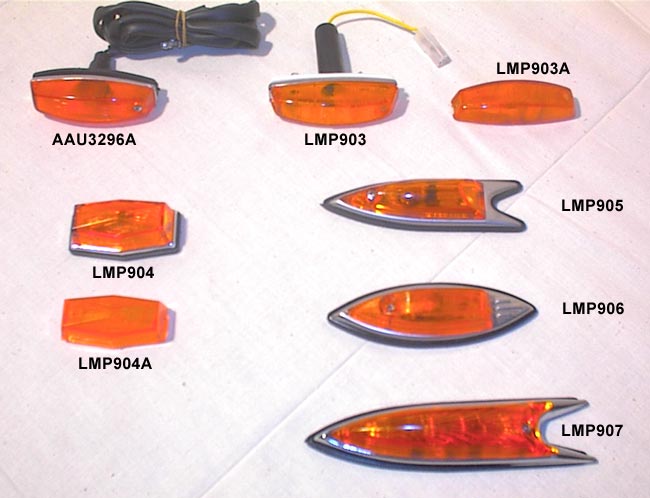

| * | AAU3296A | Flasher side Lucas | Photo | |
| * | LMP903 | Flasher side Lucas type | Photo | |
| * | LMP903A | Lens Lucas | Photo | |
| * | LMP904 | Flasher side Ermax | Photo | |
| * | LMP904A | Lens Ermax | Photo | |
| * | LMP905 | Flasher side Ermax | Photo | |
| * | LMP906 | Flasher side Ermax | Photo | |
| * | LMP907 | Flasher side Ermax | Photo |
