Ill. |
Varenummer |
Beskrivelse |
Bemærkninger |
Info |

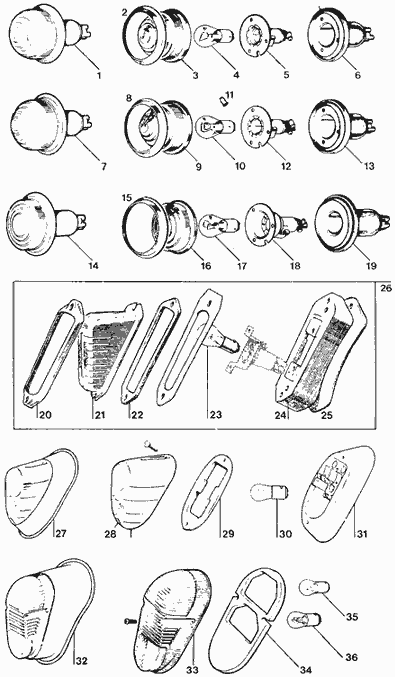

| | TRAVELLER - 1098cc |
| |
| | | | |
1 | LMP101 | Lamp assembly - flasher - amber lens | Plastic | |
* | LMP101A | Lamp assembly - flasher - amber lens | Glass | |
* | AAA2202 | Plate backing | | |
2 | LMP102 | Bezel | | |
3 | LMP103 | Lens - amber | | |
4 | BLB382 | Bulb - flasher | | |
5 | LMP104 | Bulbholder assembly | | |
* | 37H5452 | Repair kit for LMP104 | | |
6 | LMP105 | Body - rubber | | |
7 | LMP106 | Lamp assembly - stop and tail | | |
* | AAA2202 | Plate backing | | |
8 | LMP102 | Bezel | | |
9 | LMP107 | Lens - red | | |
10 | BLB380 | Bulb - stop/tail | | |
11 | LMP108 | Connector - 'bullet' | | |
12 | LMP109 | Bulbholder assembly | | |
* | 37H5459 | Repair kit for LMP109 | | |
13 | LMP105 | Body - rubber | | |
| | | | |
| | TRAVELLER - 803cc AND 948cc | | |
| | | | |
14 | LMP110 | Lamp assembly - stop/tail | | |
* | AAA2202 | Plate backing | | |
15 | LMP102 | Bezel | | |
16 | LMP111 | Lens - red | | |
17 | BLB380 | Bulb | | |
18 | LMP112 | Bulbholder assembly | | |
19 | LMP113 | Body - rubber | | |
* | AK606021 | Spire | | |
| | | | |
| | SALOONS AND CONVERTIBLE - 803cc | | |
| | | | |
20 | LMP114 | Bezel | | |
21 | LMP115 | Lens | | |
22 | LMP116 | Seating - rubber - lens | | |
23 | BLB380 | Bulb | | |
24 | LMP117 | Base - RH | | |
| LMP118 | Base - LH | | |
25 | LMP119 | Gasket - base | | |
26 | LMP120 | Lamp assembly - RH | | |
| LMP121 | Lamp assembly - LH | | |
| | | | |
| | SALOONS AND CONVERTIBLE - 948cc | | |
| | | | |
27 | LMP122 | Lamp assembly - RH | | |
| LMP123 | Lamp assembly - LH | | |
28 | LMP124 | Lens | | |
* | 57H5509 | Screw for LMP124 | | |
29 | LMP125 | Seating - rubber - lens | | |
30 | BLB380 | Bulb | | |
31 | LMP126 | Base - RH | | |
| LMP127 | Base - LH | | |
| | | | |
| | SALOONS AND CONVERTIBLE - 1098cc | | |
| | | | |
32 | LMP128 | Lamp assembly - stop/tail/flasher - RH | | |
* | LMP164 | Gasket - lamp to wing RH | | |
* | 37H5452 | Interior bulb holder RH | | |
| LMP129 | Lamp assembly - stop/tail/flasher - LH | | |
* | LMP165 | Gasket - lamp to wing LH | | |
* | 37H5459 | Interior bulb holder LH | | |
33 | LMP130 | Lens | | |
* | PMP208 | Screw for LMP130 | | |
34 | LMP131 | Gasket - seating | | |
35 | BLB382 | Bulb - flasher | | |
36 | BLB380 | Bulb - stop/tail | | |
