Repair Panels
On the page "Repair Panels - and how they fit together" you can get a better impression of exactly
where on your Morris some of these parts fit.
| Ill. |
Part Number |
Description |
Remarks |
Info |

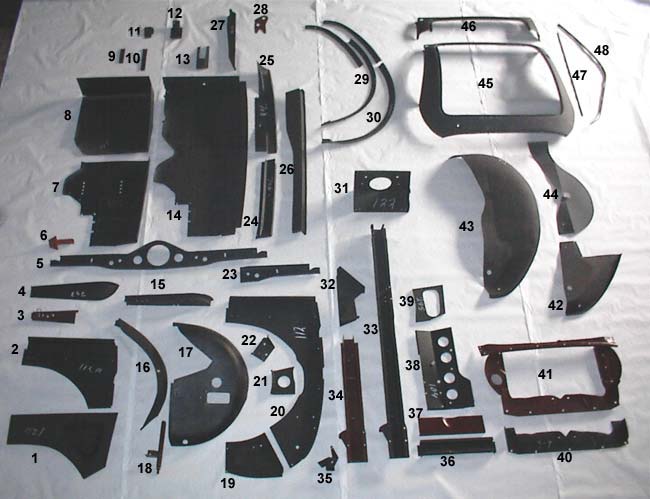

| 1 | CHS119 | Panel front side inner R |
| |
| | CHS120 | Panel front side inner L | | |
| 2 | CHS111A | Flitch repair R | | |
| | CHS112A | Flitch repair L | | |
| 3 | CHS292 | Hinge post repair R | | |
| | CHS293 | Hinge post repair L | | |
| 4 | CHS736 | Cloaking panel R | | |
| | CHS737 | Cloaking panel L | | |
| 5 | CHS124 | Crossmember centre | | |
| 6 | CHS125 | Bracket jacking | | |
| 7 | CHS712 | Floor front R | | |
| | CHS713 | Floor front L | | |
| 8 | CHS714 | Floor rear R | | |
| | CHS715 | Floor rear L | | |
| 9 | CHS269 | Floor seat bracket short | | |
| 10 | CHS270 | Floor seat bracket long | | |
| 11 | CHS290 | Rear bump stop plate | | |
| 12 | CHS268 | Boot well catch bracket | | |
| 13 | CHS138 | Bracket rear spring front R | | |
| | CHS139 | Bracket rear spring front L | | |
| 14 | CHS279 | Full ½ floor with step R | | |
| | CHS280 | Full ½ floor with step L | | |

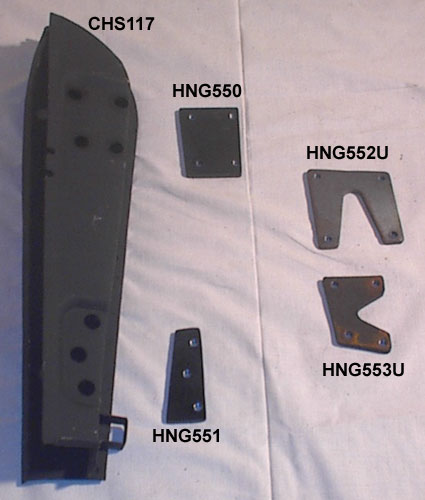

| 15 | CHS117 | Pillar hinge R | | Picture with |
| | CHS118 | Pillar hinge L | | HNG550/1 |
| 16 | CHS109A | Rear of CHS109 | | |
| | CHS110A | Rear of CHS110 | | |
| 17 | CHS109 | Wheel arch front R | | |
| | CHS110 | Wheel arch front L | | |
| 18 | CHS115 | Tube and stud R | | |
| | CHS116 | Tube and stud L | | |
| 19 | CHS113 | Extension flitch R | | |
| | CHS114 | Extension flitch L | | |
| 20 | CHS111 | Flitch R | | |
| | CHS112 | Flitch L | | |
| 21 | CHS205 | Bracket front inner wing R | | |
| | CHS206 | Bracket front inner wing L | | |
| 22 | CHS300 | Bracket wiper motor | | |
| 23 | CHS718 | Crossmember end | | |
| 24 | CHS705 | 1/4 panel inner front R | | |
| | CHS706 | 1/4 panel inner front L | | |
| 25 | CHS707 | 1/4 panel inner rear R | | |
| | CHS708 | 1/4 panel inner rear L | | |
| 26 | CHS203 | 2-door step R | | |
| | CHS204 | 2-door step L | | |
| 27 | CHS716 | Spring hanger rear R | | |
| | CHS717 | Spring hanger rear L | | |
| 28 | CHS255 | Towing bracket rear | | |
| 29 | CHS258 | Rear wing flanges R | | |
| | CHS259 | Rear wing flanges L | | |
| 30 | CHS258A | Ext. rear wing flanges R | | |
| | CHS259A | Ext. rear wing flanges L | | |
| 31 | CHS122 | Battery box | | |
| 32 | CHS101A | Tower R | | |
| | CHS102A | Tower L | | |
| 33 | CHS207 | Chassis leg R | | |
| | CHS208 | Chassis leg L | | |
| 34 | CHS940 | Chassis leg repair R | | |
| | CHS941 | Chassis leg repair L | | |
| 35 | CHS107 | Bracket tie bar R | | |
| | CHS108 | Bracket tie bar L | | |
| 36 | CHS106 | Lower front crossmember | | |
| 37 | CHS105 | Top front crossmember | | |
| 38 | CHS103 | Tie plate R | | |
| | CHS104 | Tie plate L | | |
| 39 | CHS294 | Tie plate ext. R | | |
| | CHS295 | Tie plate ext. L | | |
| 40 | CHS217 | Radiator cowl repair panel | | |
| 41 | PAN141 | Radiator cowl assembly | | |
| 42 | CHS723 | Rear inner wing repair R | | |
| | CHS724 | Rear inner wing repair L | | |
| 43 | CHS283 | Inner wing rear R | 2-door | |
| | CHS284 | Inner wing rear L | - | |
| | CHS287 | Inner wing rear R | Traveller | |
| | CHS288 | Inner wing rear L | - | |
| 44 | CHS266 | Rear inner wing repair R | | |
| | CHS267 | Rear inner wing repair L | | |
| 45 | CHS135 | Panel boot lid closing | | |
| 46 | CHS254 | Saloon rear panel | | |
| 47 | EXC110A | Strip door bottom metal | | |
| 48 | CHS302 | Gutter front R | | |
| | CHS303 | Gutter front L | | |
| Ill. |
Part Number |
Description |
Remarks |
Info |

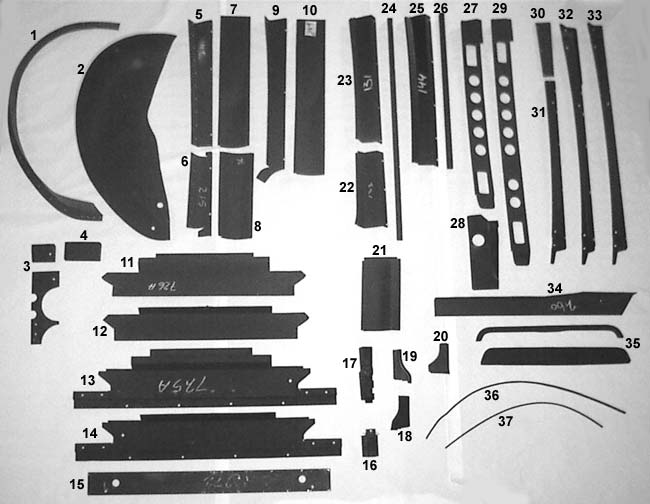

| 1 | CHS256 | Rear inner wing repair panel - R |
Traveller | |
| | CHS257 | Rear inner wing repair panel - L | - | |
| 2 | CHS287 | Inner wing rear R | - | |
| | CHS288 | Inner wing rear L | - | |
| 3 | CHS310 | Bracket rear post R | - | |
| | CHS311 | Bracket rear post L | - | |
| 4 | CHS308 | Bracket rear wing R | - | |
| | CHS309 | Bracket rear wing L | - | |
| 5 | CHS211 | Door frame repair front R | 4-door, Van | |
| | CHS212 | Door frame repair front L | - | |
| 6 | CHS215 | Door frame repair rear R | 4-door | |
| | CHS216 | Door frame repair rear L | - | |
| 7 | CHS209 | Door skin repair front R | 4-door, Van | |
| | CHS210 | Door skin repair front L | - | |
| 8 | CHS213 | Door skin repair rear R | 4-door | |
| | CHS214 | Door skin repair rear L | - | |
| 9 | CHS740 | Door frame repair R | 2-door, Traveller, Conv. | |
| | CHS741 | Door frame repair L | - | |
| 10 | CHS738 | Door skin repair R | - | |
| | CHS739 | Door skin repair L | - | |
| 11 | CHS726A | Rear apron to tank | 2-door, 4-door, Conv. | |
| 12 | CHS726 | Rear apron | - | |
| 13 | CHS725A | Rear apron to tank | Traveller | |
| 14 | CHS725 | Rear apron | - | |
| 15 | CHS272 | Valance rear | - | |
| 16 | CHS246 | B-post | 4-door, Van | |
| 17 | CHS285 | Bracket B-post R | 4-door | |
| | CHS286 | Bracket B-post L | - | |
| 18 | CHS244 | B-post R | 2-door, Conv. | |
| | CHS245 | B-post L | - | |
| 19 | CHS242 | B-post R | Traveller | |
| | CHS243 | B-post L | - | |
| 20 | CHS250 | C-post R | 4-door | |
| | CHS251 | C-post L | - | |
| 21 | CHS730 | Panel side repair R | 2-door, Conv. | |
| | CHS731 | Panel side repair L | - | |
| 22 | CHS133 | Kick plate rear R | 4-door | |
| | CHS134 | Kick plate rear L | - | |
| 23 | CHS131 | Kick plate front R | 4-door, Van, Pick-up | |
| | CHS132 | Kick plate front L | - | |
| 24 | CHS129 | Finisher sill R | 4-door | |
| | CHS130 | Finisher sill L | - | |
| 25 | CHS144 | Kick plate R | 2-door, Traveller, Conv | |
| | CHS145 | Kick plate L | - | |
| 26 | CHS142 | Finisher sill R | - | |
| | CHS143 | Finisher sill L | - | |
| 27 | CHS140 | Plate boxing R | - | |
| | CHS141 | Plate boxing L | - | |
| 28 | CHS252 | Boxing plate ext. R | - | |
| | CHS253 | Boxing plate ext. L | - | |
| 29 | CHS127 | Plate boxing R | 4-door | |
| | CHS128 | Plate boxing L | - | |
| 30 | CHS721 | Closing panel R | Traveller | |
| | CHS722 | Closing panel L | - | |
| 31 | CHS744 | Sill outer R | - | |
| | CHS745 | Sill outer L | - | |
| 32 | CHS732 | Sill outer R | 2-door, Conv. | |
| | CHS733 | Sill outer L | - | |
| 33 | CHS734 | Sill outer R | 4-door | |
| | CHS735 | Sill outer L | - | |
| 34 | CHS260 | Sill strengthener R | Traveller, Conv. | |
| | CHS261 | Sill strengthener L | - | |
| 35 | CHS289 | Boot lid repair panel | 2-door, 4-door, Conv. | |
| 36 | CHS306 | Gutter rear R | 4-door | |
| | CHS307 | Gutter rear L | - | |
| 37 | CHS304 | Gutter rear R | 2-door | |
| | CHS305 | Gutter rear L | - | |
| | CHS305 | Gutter rear L | - | |
| Ill. |
Part Number |
Description |
Remarks |
Info |

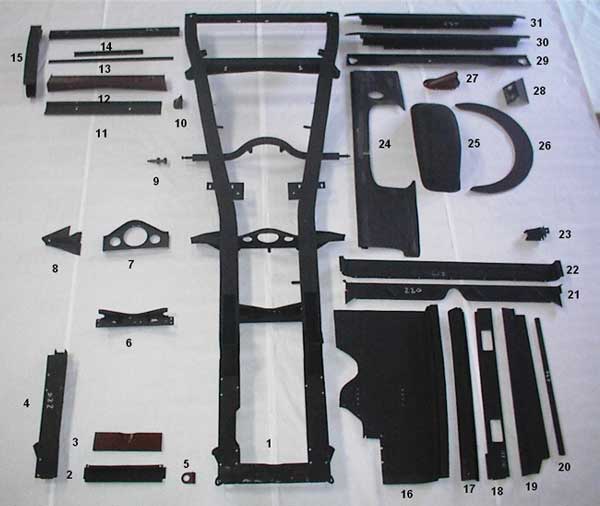

| 1 | CHS218 | Chassis |
Van, Pick-up | |
| 2 | CHS106 | Lower front crossmember | - | |
| 3 | CHS105 | Top front crossmember | - | |
| 4 | CHS225 | Chassis leg front 1/2 section - RH | - | |
| | CHS226 | Chassis leg front 1/2 section - LH | - | |
| 5 | CHS948 | Towing bracket chassis | - | |
| 6 | MNT111A | Cross member | - | |
| 7 | CHS946 | Centre cross member | - | |
| 8 | CHS944 | Centre cross member RH | - | |
| | CHS945 | Centre cross member LH | - | |
| 9 | AAA3390 | Pin rear spring front | - | |
| 10 | CHS947 | Rear bump stop chassis | - | |
| 11 | CHS949 | Plate shock absorber cross member | - | |
| 12 | CHS264 | Shocker cross member | - | |
| 13 | CHS265 | Petrol tank support | - | |
| 14 | CHS263 | Rear cross member | - | |
| 15 | CHS236 | Rear chassis end - RH | - | |
| | CHS237 | Rear chassis end - LH | - | |
| 16 | CHS275 | ½ floor with step - RH | - | |
| | CHS276 | ½ floor with step - LH | - | |
| 17 | CHS223 | Step - RH | - | |
| | CHS224 | Step - LH | - | |
| 18 | CHS201 | Boxing plate - RH | - | |
| | CHS202 | Boxing plate - LH | - | |
| 19 | CHS942 | Undersill panel - RH | - | |
| | CHS943 | Undersill panel - LH | - | |
| 20 | CHS273 | Sill finisher RH | - | |
| | CHS274 | Sill finisher LH | - | |
| 21 | CHS220 | Cab rear panel lower | - | |
| 22 | CHS219 | Cab rear panel top | - | |
| 23 | CHS246 | 'B' post | Van, Pick-up, 4-door | |
| 24 | CHS229 | Floor sides - RH | Van, Pick-up | |
| | CHS230 | Floor sides - LH | - | |
| 25 | CHS231 | Wheel arch inner rear - RH | - | |
| | CHS232 | Wheel arch inner rear - LH | - | |
| 26 | CHS238 | Rear wing edge - RH | - | |
| | CHS239 | Rear wing edge - LH | - | |
| 27 | CHS262 | Petrol filler pipe cover | - | |
| 28 | CHS240 | Light cluster - RH | - | |
| | CHS241 | Light cluster - LH | - | |
| 29 | CHS235 | Rear panel inner | - | |
| 30 | CHS233 | Rear panel | Pick-up | |
| 31 | CHS234 | Rear panel | Van | |
