| Ill. |
Varenummer |
Beskrivelse |
Bemærkninger |
Info |

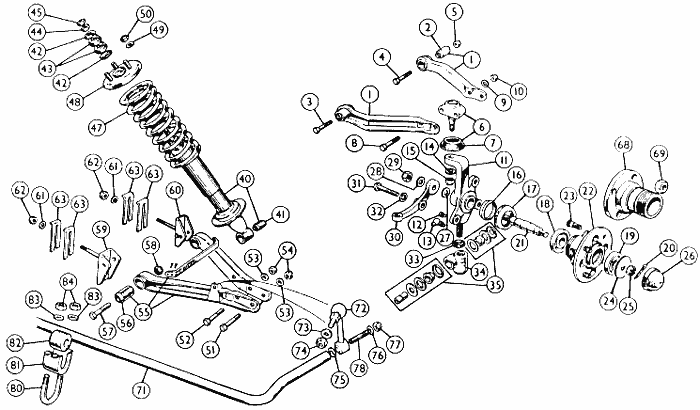

| 1 | 119272 | Wishbone top assembly |
| |
| 2 | 119451 | Bush rubber | | |
| | 119451A | Bush polyurethane | | |
| 3 | BH606181 | Bolt | | |
| 4 | BH606201 | Bolt | | |
| 5 | GHF223 | Nut nyloc | | |
| 6 | GSJ155 | Ball joint top | | |
| 8 | BH605181 | Bolt | | |
| 10 | GHF222 | Nut nyloc | | |
| 11 | GSJ266 | Vertical link L | | |
| | GSJ265 | Vertical link R | | |
| 13 | LN30041 | Grease nipple | | |
| 15 | GHF224 | Nut nyloc | | |
| 16 | 138559 | Shield inner seal | | |
| 17 | GHS146 | Seal | | |
| | GHK1021 | Bearing kit front hub | | |
| 21 | UKC697 | Stub axle | | |
| 23 | 158729 | Stud wheel | | |
| 24 | 102690 | Thrust washer outer bearing | | |
| 25 | NL608041 | Castle nut hub retaining | | |
| 26 | 102689 | Grease cap front hub | | |
| 27 | WC112081 | Washer spacing | | |
| 29 | GHF225 | Nut nyloc stub axle | | |
| 30 | 211049 | Tie rod LH | | |
| 31 | 159514 | Bolt arm to vertical link | | |
| 32 | WQ310 | Washer locking square | | |
| 33 | 122126 | Seal rubber | | |
| 34 | 140919 | Trunnion lower R | | |
| | 140920 | Trunnion lower L | | |
| 35 | GSJ791 | Bush kit trunnion | | |
| 40 | GSA366 | Shock absorber front | | |
| 41 | 119450 | Bush rubber | | |
| 42 | 147631 | Washer cupped upper | | |
| 43 | 517985 | Rubber bush | | |
| 47 | 214144 | Spring front MK1-3 | | |
| | TKC1884 | Road spring standard MK4-1500 | | |
| 48 | 122137 | Upper spring plate | | |
| 51 | 119142 | Bolt trunnion to lower wishbone | | |
| 52 | BH607201 | Bolt | | |
| 54 | GHF224 | Nut nyloc | | |
| 55 | 206685 | Wishbone lower RH | | |
| | 206686 | Wishbone lower LH | | |
| 56 | 119451 | Bush rubber | | |
| | 119451A | Bush polyurethane | | |
| 57 | BH606191 | Bolt | | |
| 58 | GHF223 | Nut nyloc | | |
| 59 | 130757 | Pivot bracket forward | | |
| 60 | 130758 | Pivot bracket rearward | | |
| 62 | GHF223 | Nut nyloc | | |
| 63 | 122022 | Shim camber adjustment | | |
| 68 | 142598 | Adaptor LH | | |
| | 142597 | Adaptor RH | | |
| 69 | 144504 | Nut champered adaptor to hub | | |
| 72 | 125482 | Link anti roll bar to wishbone LH | | |
| | 125481 | Link anti roll bar to wishbone RH | | |
| 74 | GHF224 | Nut nyloc | | |
| 78 | 125074 | Stud link attachment | | |
| 80 | 123694 | U-bolt roll bar attachment MK1-2 | | |
| | 155307 | U-bolt roll bar attachment MK3-4-1500 | | |
| 81 | 123502 | Bracket roll bar MK1-2 | | |
| | 155308 | Bracket roll bar MK3-4-1500 | | |
| 82 | 123998 | Bush rubber MK1-2 | | |
| | 155310 | Bush rubber MK3-4 | | |
| 84 | GHF222 | Nut nyloc | | |
