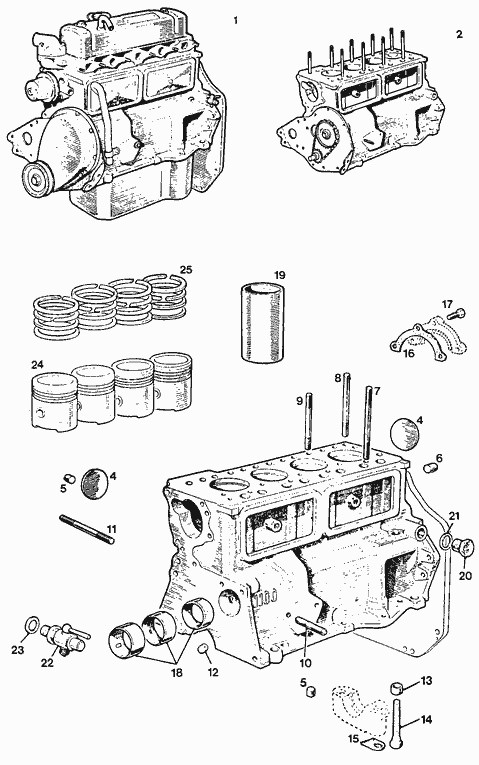

| Ill. |
Part Number |
Description |
Remarks |
Info |
| 1 | 10M101R | Engine reconditioned 1098cc |
Ask for specification | |
| | 9M101R | Engine reconditioned 948cc | - | |
| | 8M101R | Engine reconditioned 803cc | - | |
| 2 | 10M102R | Engine half reconditioned 1098cc | - | |
| | 9M102R | Engine half reconditioned 948cc | - | |
| | 8M102R | Engine half reconditioned 803cc | - | |
| 4 | 10M103 | Plug - welch | | |
| 5 | 10M104 | Plug - oil release valve pass. | | |
| 6 | 10M105 | Plug - oil gallery | | |
| 7 | 10M106 | Stud - cylinder head - long - 5 11/16" | | |
| 8 | | Stud - cylinder head - medium | Use 10M107 | |
| 9 | 10M107 | Stud - cylinder head - short - 4 1/16" | | |
| 10 | 10M108 | Stud - vent pipe clip | | |
| 11 | 10M109 | Stud - oil filter | | |
| 12 | 10M110 | Restrictor - camshaft oil feed | | |
| 13 | 10M111 | Dowel - main bearing cap | | |
| 14 | 10M112 | Bolt - main bearing cap | | |
| 15 | 10M113 | Washer - lock | | |
| 16 | 10M114 | Gasket | | |
| 17 | 10M115 | Screw | | |
| 18 | 10M116 | Liner - camshaft bearing | | |
| | 9M115 | - | | |
| | 8M117 | - | | |
| 19 | 10M117 | Liner - cylinder block | | |
| | 9M116 | - | | |
| | 8M118 | - | | |
| 20 | 10M118 | Plug - cylinder tap drain tap boss | | |
| 21 | 10M119 | Washer | | |
| 22 | 10M120 | Tap - cylinder drain | | |
| 23 | 10M121 | Washer - fibre | | |
| 24 | 10M122S | Piston assy. - standard | | |
| | 10M122.10 | Piston assy. - 0.010" .254mm O/S | | |
| | 10M122.20 | Piston assy. - 0.020" .508mm O/S | | |
| | 10M122.30 | Piston assy. - 0.030" .762mm O/S | | |
| | 10M122.40 | Piston assy. - 0.040" 1.016mm O/S | | |
| | 9M119S | Piston assy. - standard | | |
| | 9M119.10 | Piston assy. - 0.010" .254mm O/S | | |
| | 9M119.20 | Piston assy. - 0.020" .508mm O/S | | |
| | 9M119.30 | Piston assy. - 0.030" .762mm O/S | | |
| | 9M119.40 | Piston assy. - 0.040" 1.016mm O/S | | |
| | 8M121S | Piston assy. - standard | | |
| | 8M121.10 | Piston assy. - 0.010" .254mm O/S | | |
| | 8M121.20 | Piston assy. - 0.020" .508mm O/S | | |
| | 8M121.30 | Piston assy. - 0.030" .762mm O/S | | |
| | 8M121.40 | Piston assy. - 0.040" 1.016mm O/S | | |
| 25 | 10M123S | Rings - piston - standard | | |
| | 10M123.10 | Rings - piston - .010" O/S | | |
| | 10M123.20 | Rings - piston - .020" O/S | | |
| | 10M123.30 | Rings - piston - .030" O/S | | |
| | 10M123.40 | Rings - piston - .040" O/S | | |
| | 9M120S | Rings - piston - standard | | |
| | 9M120.10 | Rings - piston - .010" O/S | | |
| | 9M120.20 | Rings - piston - .020" O/S | | |
| | 9M120.30 | Rings - piston - .030" O/S | | |
| | 9M120.40 | Rings - piston - .040" O/S | | |
| | 8M122S | Rings - piston - standard | | |
| | 8M122.10 | Rings - piston - .010" O/S | | |
| | 8M122.20 | Rings - piston - .020" O/S | | |
| | 8M122.30 | Rings - piston - .030" O/S | | |
| | 8M122.40 | Rings - piston - .040" O/S | | |

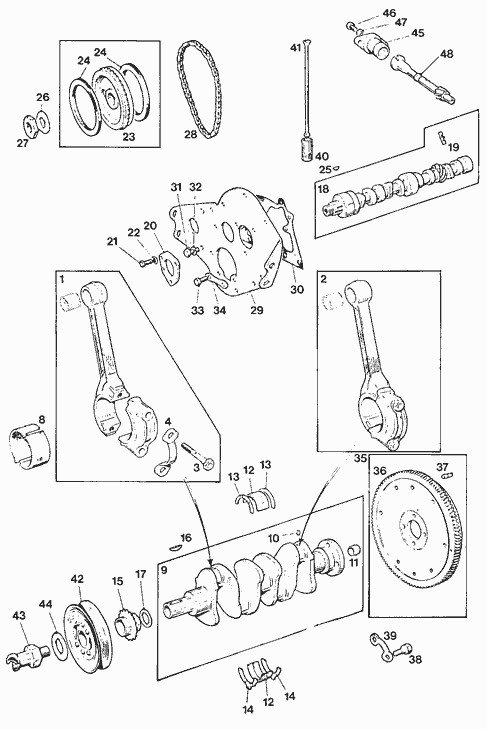

| Ill. |
Part Number |
Description |
Remarks |
Info |
| ∗ |
AJJ3325 |
Kit - dubble chain and wheels |
|
|
| ∗ |
GFK1002 |
Kit - lock tabs |
|
|
| |
|
|
|
|
| 1 | 10M124 | Rod - connecting - nos. 1&3 cyl. | | |
| | 9M122 | - | | |
| | 8M128 | - | | |
| 2 | 10M125 | Rod - connecting - nos. 2&4 cyl. | | |
| | 9M123 | - | | |
| | 8M129 | - | | |
| 3 | 10M126 | Screw | | |
| | 8M130 | - | | |
| 4 | 10M127 | Washer - lock | | |
| 8 | 10M128S | Bearing - big end - standard | | |
| | 10M128.10 | Bearing - big end - 0.010" U/S | | |
| | 10M128.20 | Bearing - big end - 0.020" U/S | | |
| | 10M128.30 | Bearing - big end - 0.030" U/S | | |
| | 10M128.40 | Bearing - big end - 0.040" U/S | | |
| | 8M133S | Bearing - big end - standard | | |
| | 8M133.10 | Bearing - big end - 0.010" U/S | | |
| | 8M133.20 | Bearing - big end - 0.020" U/S | | |
| | 8M133.30 | Bearing - big end - 0.030" U/S | | |
| | 8M133.40 | Bearing - big end - 0.040" U/S | | |
| 9 | 10M129 | Crankshaft | | |
| | 9M129 | - | | |
| | 8M134 | - | | |
| 10 | 10M130 | Restrictor - oil | | |
| 11 | 10M131 | Bush - 1st motion shaft | | |
| 12 | 10M132S | Bearing - main - standard | | |
| | 10M132.10 | Bearing - main - .010" U/S | | |
| | 10M132.20 | Bearing - main - .020" U/S | | |
| | 10M132.30 | Bearing - main - .030" U/S | | |
| | 10M132.40 | Bearing - main - .040" U/S | | |
| | 9M132S | Bearing - main - standard | | |
| | 9M132.10 | Bearing - main - .010" U/S | | |
| | 9M132.20 | Bearing - main - .020" U/S | | |
| | 9M132.30 | Bearing - main - .030" U/S | | |
| | 9M132.40 | Bearing - main - .040" U/S | | |
| | 8M137S | Bearing - main - standard | | |
| | 8M137.10 | Bearing - main - .010" U/S | | |
| | 8M137.20 | Bearing - main - .020" U/S | | |
| | 8M137.30 | Bearing - main - .030" U/S | | |
| | 8M137.40 | Bearing - main - .040" U/S | | |
| 13 | 10M133 | Washer - thrust | | |
| | 9M133 | - | | |
| 14 | 10M133 | - | | |
| | 9M133 | - | | |
| 15 | 10M135 | Gear - crankshaft | | |
| 16 | 10M136 | Key | | |
| 17 | 10M137 | Washer - packing - crankshaft gear | | |
| 18 | 10M138 | Camshaft | | |
| | 9M138 | - | | |
| 19 | 10M139 | Pin - oil pump driving | | |
| 20 | 10M140 | Plate - camshaft locating | | |
| 21 | 10M141 | Screw | | |
| 22 | 10M142 | Washer - shakeproof | | |
| 23 | 10M143 | Gear - camshaft | | |
| 24 | 10M144 | Ring - tensioner | | |
| 25 | 10M145 | Key | | |
| 26 | 10M146 | Washer - lock | | |
| 27 | 10M147 | Nut | | |
| 28 | 10M148 | Chain - timing | | |
| 29 | 10M149 | Plate - engine mounting front | | |
| 30 | 10M150 | Gasket - plate to crankcase | | |
| 31 | 10M151 | Screw - plate to crankcase | | |
| 32 | 10M152 | Washer - spring | | |
| 33 | 10M153 | Screw - plate to bearing cap | | |
| 34 | 10M154 | Plate - locking | | |
| 35 | 10M155 | Flywheel | | |
| | 9M155 | - | | |
| 36 | 10M156 | Gear - ring - starter | | |
| | 9M156 | - | | |
| 37 | 10M157 | Dowel | | |
| 38 | 10M158 | Screw - flywheel to crankshaft | | |
| 39 | 10M159 | Washer - lock | | |
| 40 | 10M160S | Tappet (cam follower) - standard | | |
| | 10M160.10 | Tappet (cam follower) - .010" O/S | | |
| | 10M160.20 | Tappet (cam follower) - .020" O/S | | |
| 41 | 10M161 | Push rod | | |
| 42 | 10M162 | Pulley - crankshaft | | |
| 43 | 10M163 | Nut - starting handle | | |
| 44 | 10M164 | Washer - lock | | |
| 45 | 10M165 | Distributor housing | | |
| 46 | 10M166 | Screw | | |
| 47 | 10M167 | Washer - shakeproof | | |
| 48 | 10M168 | Spindle - distributor drive | | |
