Ill. |
Part Number |
Description |
Remarks |
Info |

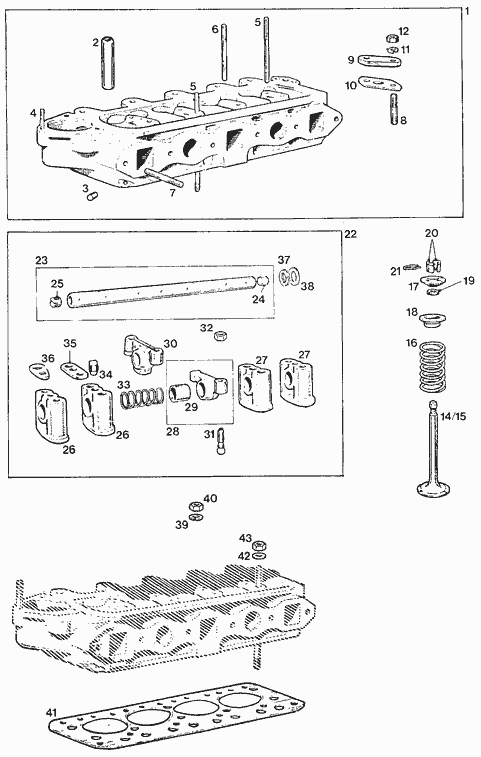

1 | 10M169R | Head - cylinder |
Available leadfree | |
| 9M170R | - | | |
| 8M175 | - | | |
2 | 10M170 | Guide - inlet and exhaust | | |
| 9M171 | - | | |
3 | 10M171 | Plug - oil hole | | |
4 | 10M172 | Stud - water outlet elbow | | |
5 | 10M173 | Stud - rocker bracket - long | | |
6 | 10M174 | Stud - rocker bracket - short | | |
7 | 10M175 | Stud - inlet and exhaust manifold | | |
8 | 10M176 | Stud - heater control tap | | |
9 | 10M177 | Plate - cover - heater control tap | | |
10 | 10M178 | Gasket | | |
11 | 10M179 | Washer - spring | | |
12 | 10M180 | Nut | | |
14 | 10M181 | Valve - inlet | | |
| 9M185 | - | | |
15 | 10M182 | Valve - exhaust | | |
16 | 10M183 | Spring - valve | | |
17 | 10M184 | Cup - valve spring | | |
18 | 10M185 | Shroud - valve guide | | |
19 | 10M186 | Ring - valve packing | | |
20 | 10M187 | Cotter - valve (collet) | | |
21 | 10M188 | Circlip | | |
22 | 10M189R | Shaft assembly - rocker | | |
23 | 10M190 | Shaft | | |
24 | 10M191 | Plug - plain | | |
25 | 10M192 | Plug - screwed | | |
26 | 10M193 | Bracket - rocker shaft (tapped) | | |
27 | 10M194 | Bracket - rocker shaft (plain) | | |
28 | 10M195 | Rocker - valve | | |
29 | 10M196 | Bush | | |
30 | 10M197 | Rocker - valve - bushed (pressed steel) | | |
31 | 10M198 | Screw - tappet adjusting | | |
32 | 10M199 | Nut - lock | | |
33 | 10M200 | Spring - spacing | | |
34 | 10M201 | Screw - locating | | |
35 | 10M202 | Plate - locating | | |
36 | 10M203 | Plate - locking | | |
37 | 10M204 | Washer - spring | | |
38 | 10M205 | Washer - plain | | |
39 | 10M206 | Washer - spring - rocker bracket stud | | |
40 | 10M207 | Nut | | |
41 | 10M208 | Gasket - cylinder head | | |
42 | 10M209 | Washer - cylinder head stud | | |
43 | 10M210 | Nut - cylinder head stud | | |
