| Ill. |
Part Number |
Description |
Remarks |
Info |

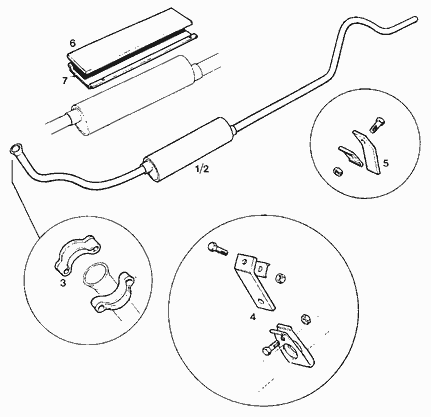

| 1 | EXH101 | Pipe - exhaust |
All models | |
| 2 | EXH102 | Pipe - exhaust - stainless steel | | |
| | EXH102A | Pipe - exhaust - Van | | |
| | EXH102B | Pipe - exhaust - Side valve | | |
| * | EXH110 | Mounting kit | | |

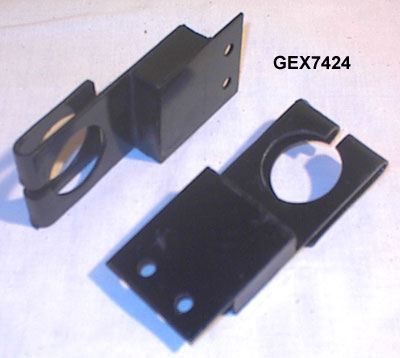

| * | GEX7424 | Mounting exhaust | Van | Photo |

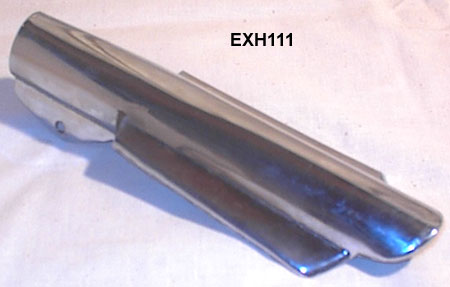

| * | EXH111 | Fish tail | | Photo |
| 3 | EXH103 | Clamp - exhaust to manifold | | |
| * | EXH103A | Clamp - exhaust to manifold - solid | | |
| 4 | EXH104 | Bracket assembly - front | | |
| * | GEX7228 | Bracket | | |
| 5 | EXH105 | Bracket assembly - rear | | |
| 6 | EXH106 | Shield - heat | | |
| 7 | EXH107 | Cover | | |
| | | | | |

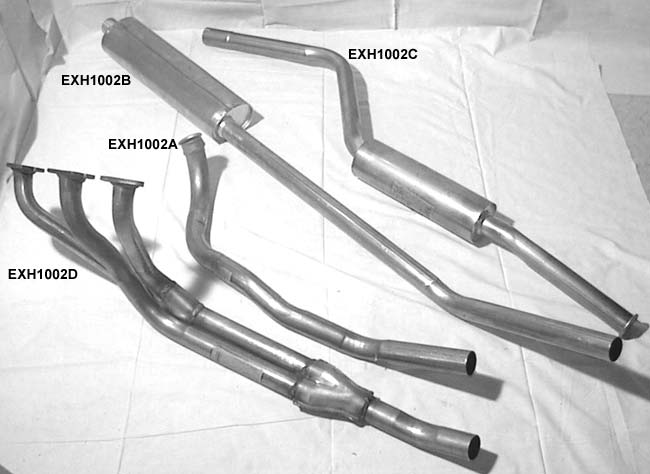

| * | EXH1002D | Free flow manifold | | Photo |
| * | EXH1002A | Downpipe 1½" | For original manifold |
Photo |
| * | EXH1002B | Damper 1½" | | Photo |
| * | EXH1002C | Rear pipe 1½" | | Photo |
| * | EXH1002G | Clamp | | |
