Gaskets
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
GSK101 | Set - gasket - head | |||
GSK102 | Set - gasket - conversion | |||
GSK103 | Set - gasket - head side valve engine | |||
GSK104 | Set - gasket - conversion side valve engine |

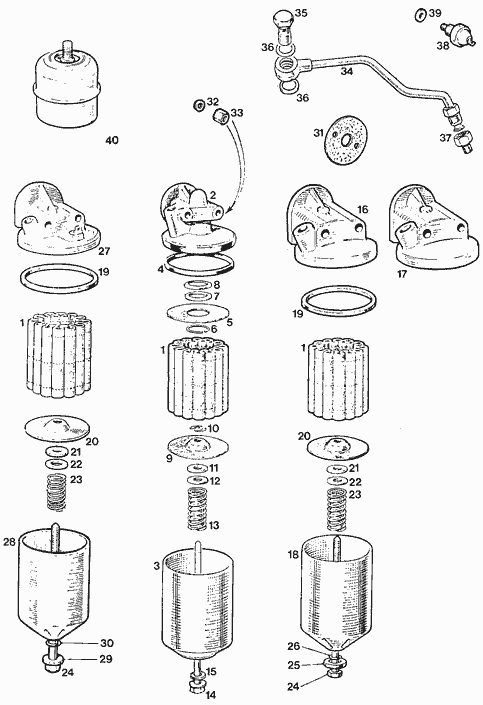

Oil Filters
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
Oil filter - Tecalemit | ||||
1 | 10M256 | Element | ||
2 | 10M257 | Head | ||
3 | 10M258 | Sump | ||
4 | 10M259 | Seal - sump to head | ||
5 | 10M260 | Plate - clamping | ||
6 | 10M261 | Circlip | ||
7 | 10M262 | Washer (felt) | ||
8 | 10M263 | Washer - dished | ||
9 | 10M264 | Plate - pressure | ||
10 | 10M265 | Circlip | ||
11 | 10M266 | Washer (felt) | ||
12 | 10M267 | Washer - plain | ||
13 | 10M268 | Spring - pressure plate | ||
14 | 10M269 | Bolt - centre | ||
15 | 10M170 | Seal - bolt to sump | ||
Oil filter - Purolator | ||||
16 | 10M271 | Head | ||
18 | 10M272 | Sump | ||
19 | 10M273 | Seal - sump to head | ||
20 | 10M274 | Plate - pressure | ||
21 | 10M275 | Seal | ||
22 | 10M276 | Washer - plain | ||
23 | 10M277 | Spring - pressure plate | ||
24 | 10M278 | Bolt | ||
25 | 10M279 | Collar | ||
26 | 10M280 | Seal | ||
Oil filter - with pressure switch | ||||
27 | 10M281 | Head - with switch | ||
28 | 10M282 | Sump | ||
29 | 10M283 | Washer - plain | ||
30 | 10M284 | Seal | ||
31 | 10M285 | Gasket - filter to crankcase | ||
32 | 10M286 | Washer - spring | ||
33 | 10M287 | Nut - filter stud | ||
34 | 10M288 | Pipe - oil | ||
35 | 10M289 | Screw - banjo union | ||
36 | 10M290 | Washer - copper | ||
37 | 10M291 | Connection - flared | ||
38 | 10M292 | Switch - oil pressure | ||
39 | 10M293 | Washer - copper | ||
40 | 8M266 | Filter - oil - 803cc engine | ||
Screw on type oil filter | ||||
* | GFE148 | Oil filter | ||
* | GUG705553GM | Gasket head to engine | ||
* | TAM2097 | Head | ||
* | TAM2119 | Adaptor |
