| Ill. |
Part Number |
Description |
Remarks |
Info |

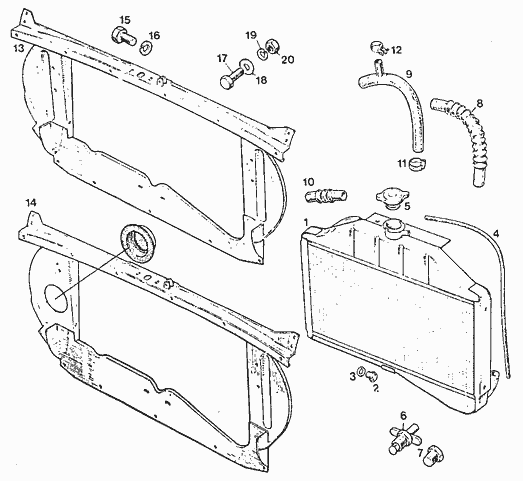

| - | RAD100 | Radiator assembly - with drain tap (early type) |
| |
| 1 | RAD101 | Radiator assembly (late type) | | |
| 2 | RAD102 | Plug - blanking | | |
| 3 | RAD103 | Washer | | |
| 4 | RAD104 | Pipe - overflow | | |
| * | ARA951 | Clip - overflow pipe to radiator | | |
| 5 | RAD105 | Cap - filler | | |
| 6 | RAD106 | Tap - drain | | |
| 7 | RAD107 | Plug - drain | | |
| 8 | RAD108 | Hose - bottom | | |
| 9 | RAD109 | Hose - bottom (with heater take-off) | | |
| 10 | RAD110 | Hose - top | | |
| 11 | RAD111 | Clip - jubilee | | |
| 12 | RAD112 | Clip - jubilee | | |
| 13 | RAD113 | Cowl assembly | | |
| 14 | RAD114 | Cowl assembly (with intake tube) | | |
| 15 | RAD115 | Screw | | |
| 16 | RAD116 | Washer - spring | | |
| 17 | RAD117 | Screw | | |
| 18 | RAD118 | Washer - plain | | |
| 19 | RAD119 | Washer - spring | | |
| 20 | RAD200 | Nut | | |
