Air Cleaners & Filters

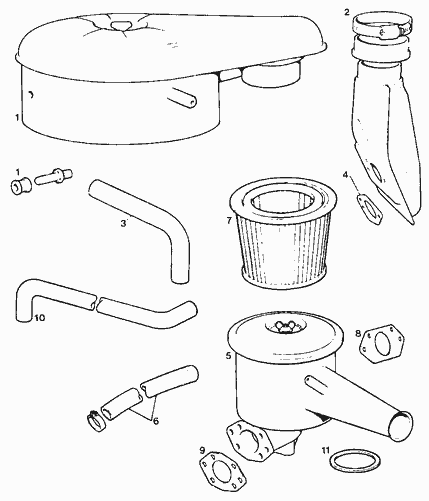

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | AIR112 | Cleaner - air | 948cc | |
| * | ACH8490 | Rubber ring for AIR112 | ||
| 2 | AIR113 | Pipe assembly | ||
| 3 | AIR114 | Pipe - breather - rubber | ||
| 4 | AIR115 | Gasket - air pipe to carburetter | ||
| 5 | AIR116 | Cleaner - air | ||
| * | 53K2852 | Wing nut for AIR116 | ||
| 6 | AIR117 | Hose - air cleaner to rocker cover | ||
| 7 | AIR118 | Filter | ||
| 8 | AIR119 | Gasket - air cleaner to carburetter | Use AIR120 | |
| 9 | AIR120 | Gasket - air cleaner to carburetter | ||
| 10 | AIR121 | Hose - air cleaner to rocker cover | ||
| 11 | AIR122 | Washer - fibre |

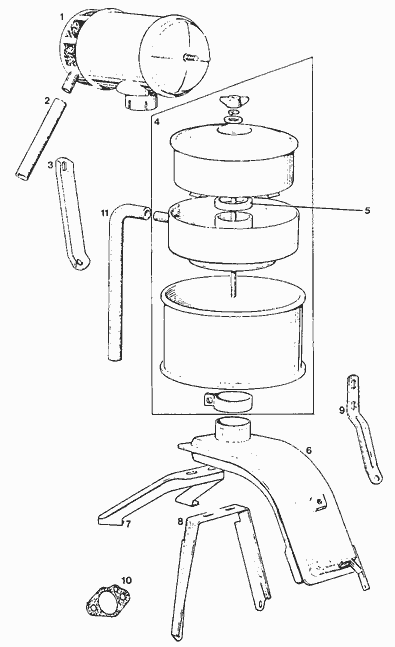

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | AIR101 | Cleaner - air | ||
| 2 | AIR102 | Hose | ||
| 3 | AIR103 | Bracket - steady | ||
| 4 | AIR104 | Cleaner assembly - air | ||
| 5 | AIR105 | Washer - sealing | ||
| 6 | AIR106 | Pipe - air | ||
| 7 | AIR107 | Bracket - steady | ||
| 8 | AIR108 | Bracket - support | ||
| 9 | AIR109 | Bracket - steady | ||
| 10 | AIR110 | Gasket - air pipe to carburetter | ||
| 11 | AIR111 | Hose - air cleaner to rocker cover |

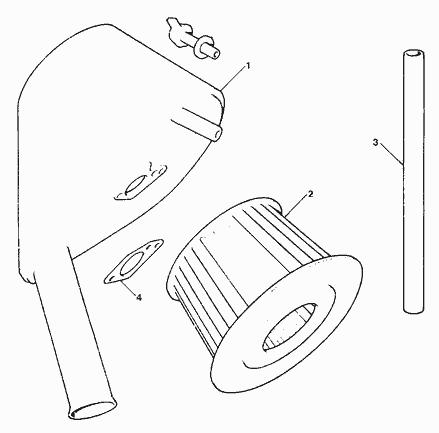

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | AIR123 | Cleaner assembly - air | 1098cc | |
| * | 27H6983 | wing nut for AIR123 | ||
| * | 10M144 | rubber seal for AIR123 | ||

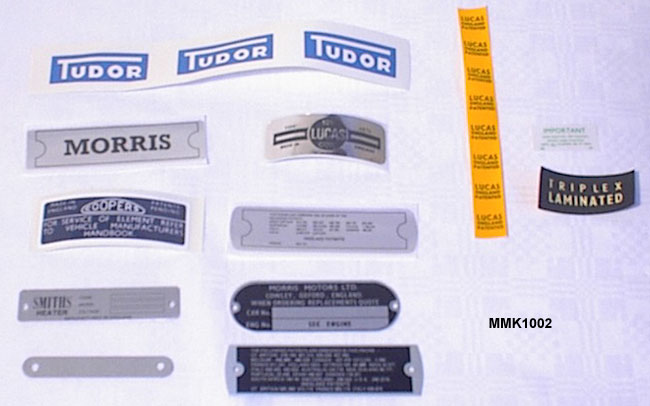

| * | LMG1014 | Sticker - 'Coopers' for AIR123 | Photo | |
| 2 | AIR118 | Filter | ||
| 3 | AIR125 | Pipe - cleaner to rocker cover | ||
| 4 | AIR126 | Gasket - cleaner to carburetter |
