| Ill. |
Part Number |
Description |
Remarks |
Info |

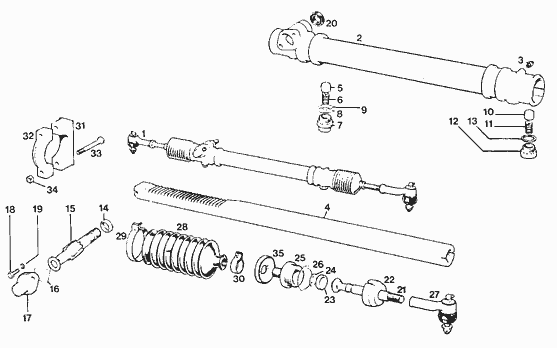

| 1 | STR101 | Rack assembly - RHD |
| |
| | STR102 | Rack assembly - LHD | | |
| 2 | STR103 | Housing - RHD | | |
| | STR104 | Housing - LHD | | |
| * | DCH105 | Rubber blanking | | |
| 3 | STR105 | Lubricator | | |
| 4 | STR106 | Rack | | |
| 5 | STR107 | Pad - damper | | |
| 6 | STR108 | Spring - pad | | |
| 7 | STR109 | Housing - pad | | |
| 8 | STR110 | Shim - housing | | |
| 9 | STR111 | Shim - damper | | |
| 10 | STR112 | Pad - secondary damper | | |
| 11 | STR113 | Spring - pad | | |
| 12 | STR114 | Housing - pad | | |
| 13 | STR115 | Washer - joint - housing | | |
| 14 | STR116 | Washer - thrust - pinion top | | |
| 15 | STR117 | Pinion - RHD | | |
| | STR118 | Pinion - LHD | | |
| 16 | STR119 | Shim - tail bearing - .003" .076mm | | |
| | STR120 | Shim - tail bearing - .005" .127mm | | |
| | STR121 | Shim - tail bearing - .010" .254mm | | |
| 17 | STR122 | Bearing - pinion tail | | |
| 18 | STR123 | Screw - bearing to rack housing | | |
| 19 | STR124 | Washer - spring | | |
| 20 | STR125 | Seal - pinion | | |
| 21 | STR126 | Tie-rod | | |
| | STR127 | Tie-rod | All years to 1959 | |
| 22 | STR128 | Housing - ball - female | | |
| 23 | STR129 | Seat - ball | | |
| 24 | STR130 | Shim - ball seat - .003" .076mm | | |
| | STR131 | Shim - ball seat - .005" .127mm | | |
| 25 | STR132 | Housing - ball - male | | |
| 26 | STR133 | Shim - ball housing - .002" .051mm | | |
| | STR134 | Shim - ball housing - .010" .254mm | | |
| 27 | STR135 | Track rod end | | |
| | STR136 | Track rod end | Chassis no. 566385 on | |
| * | NT610041 | Nut lock for track rod end | | |
| * | 17H3501 | Rubber boot for track rod end | | |
| 28 | STR137 | Seal - rack | | |
| 29 | STR138 | Clip - inner | | |
| 30 | STR139 | Clip - outer | | |
| 31 | STR140 | Clamp | | |
| 32 | STR141 | Cap - rack clamp | | |
| 33 | STR142 | Bolt | | |
| 34 | STR143 | Nut | | |
| 35 | STR144 | Lock - male ball housing | | |
