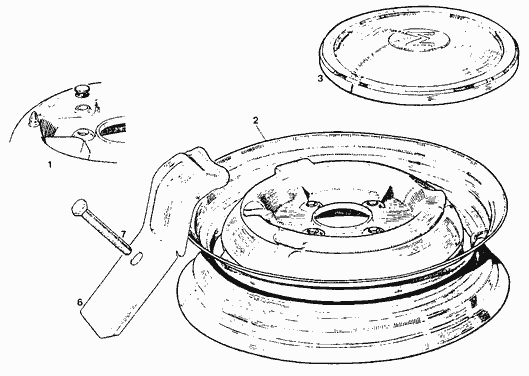

Wheels
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| WHL101 | Road wheel | |||
| 1 | WHL102 | Road wheel | Late 803cc | |
| 2 | WHL103 | Road wheel | 948cc and 1098cc | |

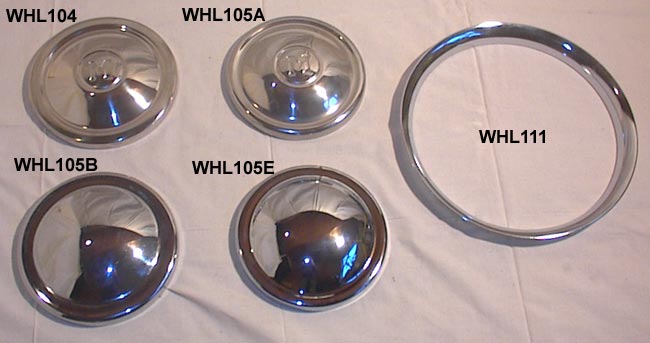

| 3 | WHL104 | Hubcap big with M | diam. 23cm | Photo |
| * | WHL105A | Hubcap small with M | diam. 22cm | Photo |
| * | WHL105B | Hubcap big without M | diam. 23cm | Photo |
| * | WHL105E | Hubcap small without M | diam. 22cm | Photo |
| 6 | WHL108 | Clamp - spare wheel | ||
| 7 | WHL109 | Screw | ||
| * | WHL111 | Wheel trim | Photo | |
| * | JCK101 | Jack | ||
| * | JCK102 | Wheel brace / starting handle | ||
| * | JCK103 | Hub cap remover |

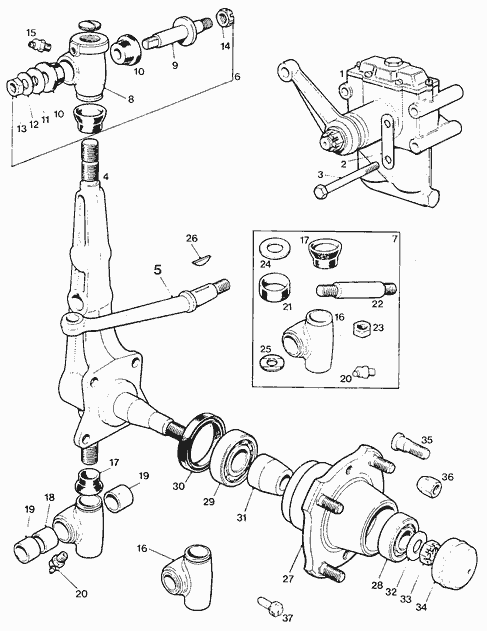

Front Suspension
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | SUS129 | Absorber - shock - RH | ||
| SUS130 | Absorber - shock - LH | |||
| 2 | SUS131 | Plate - locking | ||
| 3 | SUS132 | Bolt - absorber to cross-member | ||
| 4 | SUS133 | Pin - swivel - RH | ||
| BTA638 | - | Van, Pick-up | ||
| SUS134 | Pin - swivel - LH | |||
| BTA639 | - | Van, Pick-up | ||
| 5 | SUS135 | Lever - steering - RH | ||
| BTA594 | - | Van, Pick-up | ||
| SUS136 | Lever - steering - LH | |||
| BTA595 | - | Van, Pick-up | ||
| 6 | SUS137 | Kit - trunnion - upper - RH | ||
| SUS138 | Kit - trunnion - upper - LH | |||
| 7 | SUS139 | Kit - trunnion - lower - RH | ||
| SUS140 | Kit - trunnion - lower - LH | |||
| 8 | SUS141 | Link - upper - RH | ||
| SUS142 | Link - upper - LH | |||
| 9 | SUS143 | Pivot - shock absorber arm | ||
| 10 | SUS144 | Bush - upper link | ||
| 11 | SUS145 | Washer - pivot - rear | ||
| 12 | SUS146 | Washer - tab - pivot - rear | ||
| 13 | SUS147 | Nut - pivot - front | ||
| 14 | SUS148 | Nut - pivot - rear | ||
| 15 | SUS149 | Lubricator - upper link | ||
| 16 | SUS150 | Link - lower - RH | ||
| SUS151 | Link - lower - LH | |||
| 17 | SUS152 | Seal - rubber | ||
| 18 | SUS153 | Tube - distance | ||
| 19 | SUS154 | Bush | ||
| 20 | SUS155 | Lubricator - lower link | ||
| 21 | SUS156 | Ring - sealing | ||
| 22 | SUS157 | Pin - fulcrum | ||
| 23 | SUS158 | Nut | ||
| 24 | SUS159 | Washer - thrust | ||
| 25 | SUS160 | Washer - tab - pivot | ||
| 26 | SUS161 | Woodruff | ||
| 27 | SUS162 | Hub assembly | ||
| 28 | SUS163 | Bearing - outer | ||
| 29 | SUS164 | Bearing - inner | ||
| 30 | SUS165 | Seal - oil - hub | ||
| SUS166 | Kit - bearing | Incl. SUS163-164-165 | ||
| 31 | SUS167 | Spacer - bearing | ||
| 32 | SUS168 | Washer - special | ||
| 33 | SUS169 | Nut - right-hand thread | ||
| SUS170 | Nut - left-hand thread | |||
| 34 | SUS171 | Cap - grease retaining | ||
| 35 | SUS175 | Stud - wheel nut | ||
| 36 | SUS176 | Wheel nut | ||
| * | SUS176A | Wheel nut chrome | ||
| * | SUS176B | Wheel nut locking | ||
| Early 803cc only: | ||||
| SUS172 | Bearing - outer - 5/8" bore | |||
| SUS173 | Bearing - inner - 7/8" bore | |||
| SUS174 | Seal - oil - hub | |||
| * | SUS166E | Kit - bearing | ||
| 37 | SUS177 | Stud - wheel |

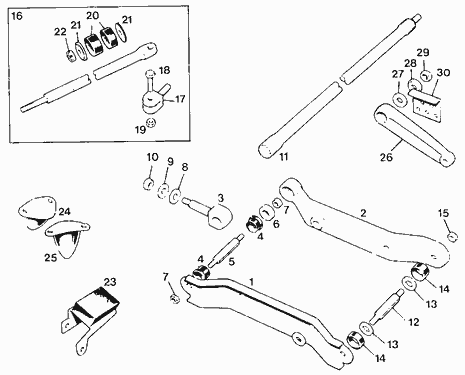

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | SUS101 | Arm - lower - front | ||
| 2 | SUS102 | Arm - lower - rear | ||
| 3 | SUS103 | Eyebolt | ||
| 4 | SUS104 | Bush - eyebolt | ||
| 5 | SUS105 | Pin - fulcrum - eyebolt to arm | ||
| 6 | SUS106 | Spigot - pivot - rear | ||
| 7 | SUS107 | Nut | ||
| 8 | SUS108 | Washer - eyebolt - thick | ||
| 9 | SUS109 | Washer - eyebolt - thin | ||
| 10 | SUS110 | Nut | ||
| 11 | SUS111 | Bar - torsion | ||
| 12 | SUS157 | Pin - fulcrum - link to arm | ||
| 13 | SUS112 | Washer - thrust - fulcrum pin | ||
| 14 | SUS113 | Ring - sealing - fulcrum pin | ||
| 15 | SUS107 | Nut | ||
| 16 | SUS114 | Kit - tie rod | ||
| * | SUS114A | Tie rod | ||
| 17 | SUS115 | Fork - tie rod to lower arm | ||
| * | AAA2083 | Nut for fork tie rod to arm | ||
| 18 | SUS116 | Bolt - tie rod to fork | ||
| 19 | SUS117 | Nut | ||
| 20 | SUS118 | Bush - rubber | ||
| 21 | SUS119 | Washer - cup | ||
| 22 | SUS120 | Nut | ||
| 23 | SUS121 | Bracket - rebound check | ||
| 24 | SUS122 | Bump stop - RH | ||
| 25 | SUS123 | Bump stop - LH | ||
| 26 | SUS124 | Lever - torsion bar | ||
| 27 | SUS125 | Washer - retaining - lever | ||
| 28 | SUS126 | Washer - locating - lever | ||
| 29 | SUS127 | Nut - torsion bar | ||
| 30 | SUS128 | Plate - adjuster |
