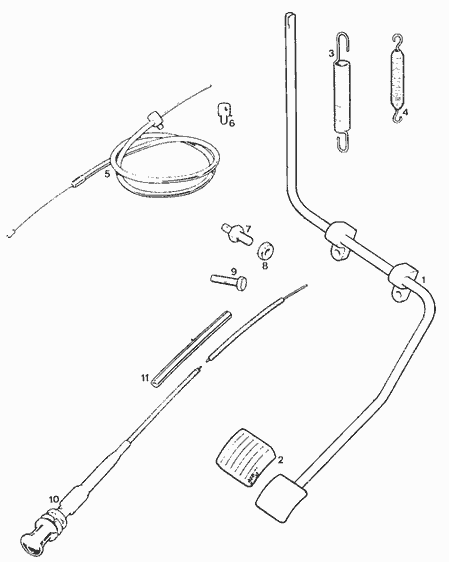

Pedals
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | ACP101 | Pedal - accelerator | ||
2 | ACP102 | Rubber - pedal | ||
3 | ACP103 | Spring - throttle return | ||
* | 12A4 | Bracket - spring to carburettor | ||
* | 12A5 | Bracket - spring to exh. manifold | ||
4 | ACP104 | Spring - pedal return | ||
5 | ACP105 | Cable assembly - accelerator | ||
6 | ACP107 | Barrel - ' T ' | ||
7 | ACP108 | Pin - carburetter lever | ||
8 | ACP109 | Nut | ||
9 | ACP110 | Screw special | ||
10 | ACP111 | Control - mixture (choke) | ||
11 | ACP112 | Tube - anti-rattle - rubber |

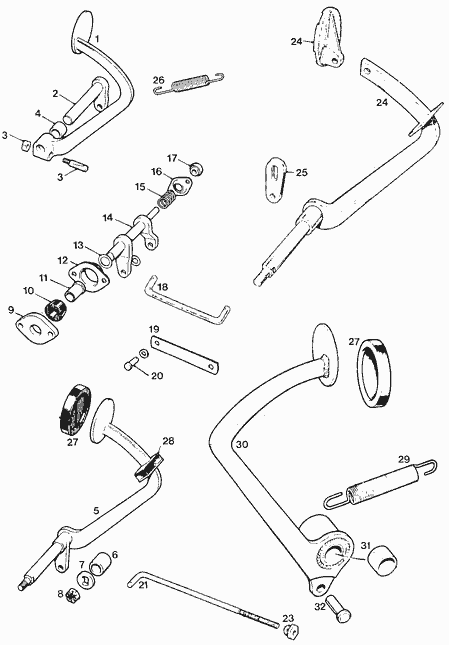

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | COM101 | Pedal - clutch | 803cc and 948cc to | |
2 | COM102 | Shaft - with lever | chassis nos. MAT3 | |
3 | COM103 | Cotter - incl. nut and washer | 577815 MAW3 572277 | |
4 | COM104 | Bush - frame | ||
5 | COM105 | Pedal - clutch | Late 948cc and 1098cc | |
COM105A | Shaft only | |||
6 | COM106 | Spacer - clutch pedal | ||
7 | COM107 | Washer - locating | ||
8 | COM108 | Nut | ||
9 | COM109 | Packing piece - RHD only | All models - except | |
10 | COM110 | Bush - bracket (rubber) | where otherwise shown | |
11 | COM111 | Bush - relay shaft | ||
12 | COM112 | Bracket | ||
13 | COM113 | Washer - plain | ||
14 | COM114 | Shaft with lever | From no. 198690 | |
COM115 | Shaft with lever | From no. 990290 | ||
15 | COM116 | Spring - relay shaft | ||
16 | COM117 | Retainer - bearing | ||
17 | COM118 | Bearing | ||
18 | COM119 | Rod - pedal to relay | Use COM120 + 121 | |
19 | COM120 | Plate - pedal to relay | ||
20 | COM121 | Clevis pin | ||
21 | COM122 | Rod - relay to engine lever | From no. 198690 | |
COM123 | Rod - relay to engine lever | From no. 990290 | ||
22 | COM124 | Washer - anti-rattle | ||
23 | COM125 | Nut for COM122 and COM123 | ||
COM126 | Nut - lock | |||
24 | COM127 | Pedal - clutch - LHD | COM105A shaft only | |
25 | COM128 | Lever - clutch - LHD | ||
26 | COM129 | Spring - return | 803cc and 948cc | |
COM130 | Spring - return | From no. 990290 | ||
27 | COM131 | Rubber pad | Clutch and brake pedals | |
* | COM131A | Rubber pad with M | ||
28 | COM132 | Pad - pedal seating | ||
29 | CBS129 | Spring - brake pedal return | ||
30 | CBS130 | Pedal - brake | ||
31 | COM104 | Bush - pedal shaft | ||
32 | CBS132 | Pin - clevis |
