Brakes

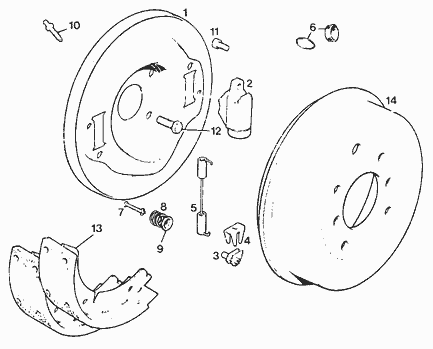

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | FBK101 | Plate - brake - RH | Late 803cc and 948cc * | |
| FBK102 | Plate - brake - LH | - | ||
| FBK103 | Plate - brake - LH | 1098cc | ||
| FBK104 | Plate - brake - RH | - | ||
| * | FBK126 | Bolt plate to spindle | ||
| 2 | FBK105 | Cylinder assembly RH | ||
| FBK106 | Cylinder assembly LH | |||
| 6 | FBK107 | Kit - repair - wheel cylinder | ||
| 3 | FBK108 | Adjuster | Late 803cc and 948cc * | |
| 4 | FBK109 | Mask - adjuster | ||
| 3 | FBK110 | Adjuster 1098cc | 1098cc | |
| 4 | FBK111 | Mask - adjuster | ||
| 5 | FBK112 | Spring - pull off | Late 803cc and 948cc * | |
| 5 | FBK113 | Spring - pull off | 1098cc | |
| 7 | FBK114 | Pin - steady - brake shoe | ||
| 8 | FBK115 | Spring - steady pin | ||
| 9 | FBK116 | Retainer - spring | ||
| 10 | FBK117 | Nipple - bleed | ||
| * | 234957A | Rubber seal for bleeder | ||
| 11 | FBK118 | Screw - cylinder to back plate - short | ||
| 12 | FBK119 | Screw - cylinder to back plate - long | ||
| 13 | FBK120 | Kit - brake shoe | Late 803cc and 948cc * | |
| FBK121 | Kit - brake shoe | 1098cc | ||
| 2 | FBK122 | Cylinder assembly RH | 803cc to 228266 | |
| FBK123 | Cylinder assembly LH | Traveller to 216900 | ||
| 14 | FBK124 | Drum - brake - 178mm diam. | Late 803cc and 948cc | |
| FBK125 | Drum - brake - 203mm diam. | 1098cc | ||
| * Late 803cc means from chassis no. 228267 (car) 216901 (Traveller) 1098cc specifications started from chassis no. 990289 | ||||
| DSK100 | Disc brake kit |

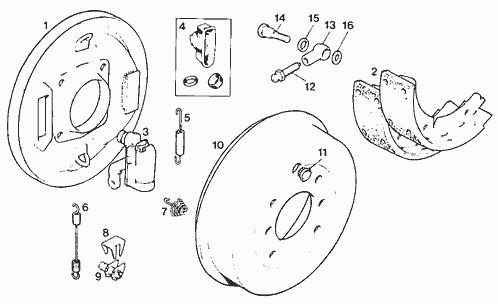

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | RBK101 | Plate - brake - RH | ||
| RBK102 | Plate - brake - LH | |||
| * | SH605071 | Bolt | ||
| * | GHF222 | Nut | ||
| 2 | RBK103 | Brake shoe assembly | ||
| 3 | RBK123 | Cylinder assembly - wheel | 803cc to 228266 | |
| Traveller to 216900 | ||||
| RBK105 | Cylinder assembly - wheel | Late 803cc and all 948cc | ||
| RBK106 | Cylinder assembly - wheel | All 1098cc | ||
| 4 | RBK107 | Kit - repair - wheel cylinder | For RBK105 | |
| RBK108 | Kit - repair - wheel cylinder | For RBK106 | ||
| 5 | RBK109 | Spring - tension | ||
| 6 | RBK110 | Spring - pull off | ||
| 7 | RBK111 | Spring - steady | ||
| 8 | RBK112 | Adjuster | ||
| 9 | RBK114 | Mask - adjuster | ||
| 10 | RBK115 | Drum - brake | ||
| -- | RBK116 | Screw - drum to hub | ||
| 11 | RBK117 | Seal - dust - drum | ||
| 12 | RBK118 | Screw - bleed | ||
| * | SMP100030 | Cap for RBK118 | ||
| 13 | RBK119 | Connection - banjo | ||
| 14 | RBK120 | Bolt - banjo connection | ||
| 15 | RBK121 | Gasket - large | ||
| 16 | RBK122 | Gasket - small |

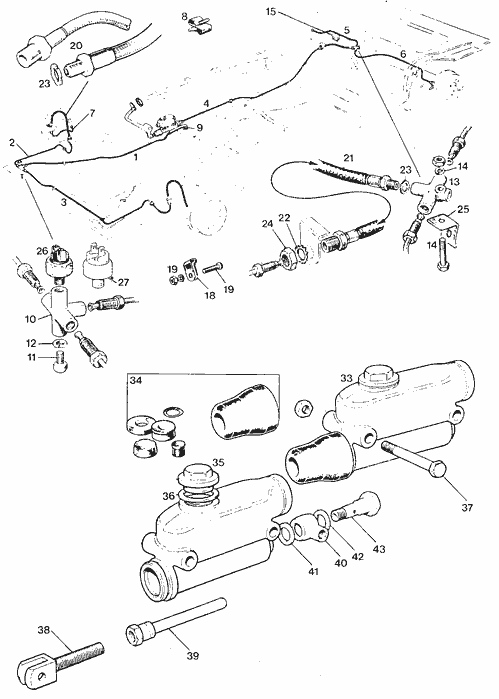

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | CBS101 | Pipe - master cylinder to 3-way front | ||
| * | AAA1895 | Grommet brake pipe through plate in | ||
| compartment | ||||
| 2 | CBS102 | Pipe - 3 way to RH front | ||
| 3 | CBS103 | Pipe - 3 way to LH front | ||
| 4 | CBS104 | Pipe - master cylinder to rear hose | ||
| 5 | CBS105 | Pipe - hose to RH rear | ||
| 6 | CBS106 | Pipe - hose to LH rear | All pipes copper | |
| 7 | CBS107 | Pipe - bridge | ||
| 8 | CBS108 | Clip - pipe to chassis leg | ||
| 9 | CBS109 | Sleeve - pipe protecting | ||
| 10 | CBS110 | 3-way piece front | ||
| 11 | CBS111 | Screw for 3-way piece front | ||
| 12 | CBS112 | Spring - washer | ||
| 13 | CBS113 | 3-way piece for rear axle | ||
| 14 | CBS114 | Nut, bolt and spring washer | ||
| 15 | CBS115 | Strap - pipe to rear axle | ||
| -- | CBS116 | Grommet for front wheel arch | ||
| -- | CBS117 | Grommet for centre cross member | ||
| 18 | CBS118 | Clip - pipe to cross member | ||
| 19 | CBS119 | Nut, bolt and washer for clip | ||
| 20 | CBS120 | Hose - front | 803cc to no. 228266 | |
| Traveller to 216900 | ||||
| CBS122 | Hose - front | Late 803cc, 948cc | ||
| and 1098cc | ||||
| 21 | CBS121 | Hose - rear | 803cc to no. 228266 | |
| Traveller to 216900 | ||||
| CBS122 | Hose - rear | Late 803cc, 948cc | ||
| and 1098cc | ||||
| * | GHB123 | Hose - rear | Van, Pick-up | |
| 22 | CBS123 | Washer | ||
| 23 | CBS124 | Gasket | ||
| 24 | CBS125 | Locknut | ||
| 25 | CBS126 | Bracket for rear hose | ||
| 26 | CBS127 | Switch - stop light | ||
| 27 | CBS128 | Switch - stop light | ||
| 33 | CBS133 | Master cylinder assembly | 803cc and 948cc to | |
| 34 | CBS134 | Kit - master cylinder repair | chassis no. 990289 | |
| 35 | CBS135 | Plug - filler | ||
| 36 | CBS136 | Gasket - plug | ||
| 37 | CBS137 | Bolt - master cylinder fixing | ||
| 38 | CBS138 | Yoke - push rod | ||
| 39 | CBS139 | Rod - push - piston | ||
| 40 | CBS140 | Connection - banjo | ||
| 41 | CBS141 | Gasket - banjo bolt - large | ||
| 42 | CBS142 | Gasket - banjo bolt - small | ||
| 43 | CBS143 | Bolt | ||
| 33 | CBS144 | Master cylinder assembly | 1098cc | |
| 34 | CBS145 | Kit - master cylinder repair | 1098cc |

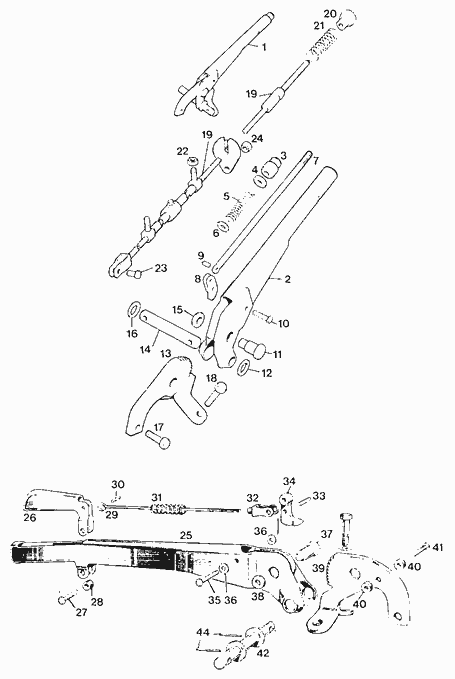

| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | HBK101 | Lever assembly - handbrake - 948 and 1098cc | ||
| 2 | HBK102 | Lever | ||
| 3 | HBK103 | Knob release | ||
| 4 | HBK104 | Washer - anti-rattle (felt) | ||
| 5 | HBK105 | Spring | ||
| 6 | HBK106 | Washer - plain | ||
| 7 | HBK107 | Rod - release | ||
| 8 | HBK108 | Pawl | ||
| 9 | HBK109 | Rivet | ||
| 10 | HBK110 | Rivet - lever pawl pivot | ||
| 11 | HBK111 | Pin - fulcrum | ||
| 12 | HBK112 | Washer - fulcrum pin | ||
| 13 | HBK113 | Ratchet | ||
| 14 | HBK114 | Trunnion - lever | ||
| 15 | HBK115 | Washer - self-fixing - trunnion | ||
| 16 | HBK116 | Washer - trunnion | ||
| 17 | HBK117 | Bolt with nut | ||
| 18 | HBK118 | Bolt | ||
| 19 | HBK119 | Cable - handbrake | ||
| * | ACA5439 | Cable - hand brake | Van, Pick-up | |
| * | AAA1630 | Guide hand brake cable through back plate | - | |
| * | ACA5532 | Guide plates hand brake cable | ||
| * | 21A385 | Seal for guide plates hand brake cable | ||
| 20 | HBK120 | Nut - adjusting | ||
| 21 | HBK121 | Spring - adjusting | ||
| 22 | HBK122 | Nut | ||
| 23 | HBK123 | Pin - clevis | ||
| 24 | HBK124 | Nut | ||
| 25 | HBK126 | Lever | ||
| * | HBK125 | Lever assembly 803cc | ||
| 26 | HBK127 | Trigger | ||
| 27 | HBK128 | Rivet - trigger | ||
| 28 | HBK129 | Distance piece | ||
| 29 | HBK130 | Rod - trigger pull | ||
| 30 | HBK131 | Rivet | ||
| 31 | HBK132 | Spring | ||
| 32 | HBK133 | Yoke | ||
| 33 | HBK134 | Rivet | ||
| 34 | HBK135 | Pawl | ||
| 35 | HBK136 | Rivet | ||
| 36 | HBK137 | Washer | ||
| 37 | HBK111 | Pin | ||
| 38 | HBK112 | Washer | ||
| 39 | HBK138 | Ratchet | ||
| 40 | HBK139 | Washer | ||
| 41 | HBK140 | Rivet | ||
| 42 | HBK141 | Trunnion | ||
| 43 | HBK116 | Washer | ||
| 44 | HBK123 | Pin |
