Ill. |
Part Number |
Description |
Remarks |
Info |

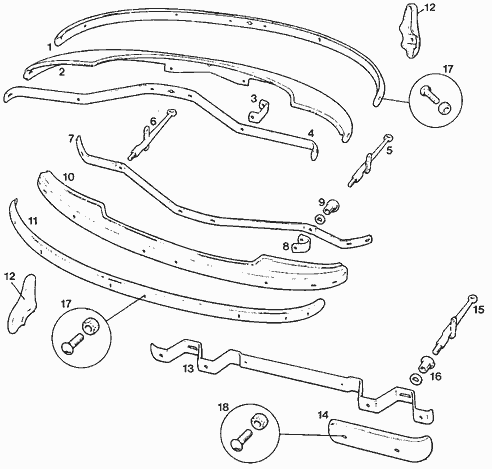

1 | PAN101 | Bumper blade - chrome - front |
| |
2 | PAN102 | Valance - front | | |
3 | PAN103 | Spring - over-rider support | | |
4 | PAN104 | Bar - mounting - front | | |
5 | PAN105 | Stud - mounting - rear RH | | |
6 | PAN106 | Stud - mounting - rear LH | | |
7 | PAN107 | Bar - mounting - rear | | |
8 | PAN108 | Spring - over-rider support | | |
9 | PAN109 | Ferrule | | |
10 | PAN110 | Valance - rear | | |
11 | PAN111 | Bumper blade - chrome - rear | | |
12 | PAN112 | Over-rider | | |
13 | PAN113 | Bar - mounting - rear | | |
* | 14A8300 | Plinth - no.plate light | Traveller | Photo |
14 | PAN114 | Blade - rear | | |
15 | PAN115 | Stud - mounting - rear RH | Traveller | |
| PAN116 | Stud - mounting - rear LH | | |
16 | PAN117 | Ferrule | | |
17 | PAN118 | Bolt - chrome - and nut | | |
18 | PAN119 | Bolt - chrome - and nut | | |
| | | | |
| Not Illustrated | | | |
| AAA4139 | bumper blade front | Van, Pick-up | |
| AAA4140 | bolt for bumper blade | Van, Pick-up | |
| AAA4141 | bolt for bumper blade short | Van, Pick-up | |
| ADA3891 | plate for number plate front | | |
| ADA683 | plate for number plate rear | Traveller | |
| PAN114V | bumper rubber van - pick up | 948cc | |
| ADA531 | bumper rubber van - pick up | 1098cc | |
