Side Doors

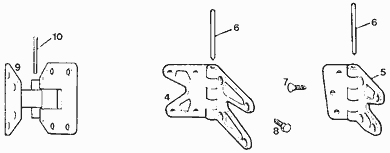

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
4 | HNG501 | Hinge - upper - RH | All models | |
HNG502 | Hinge - upper - LH | |||
5 | HNG503 | Hinge - lower - RH | ||
HNG504 | Hinge - lower - LH | |||
6 | HNG505 | Pin - hinge | ||
* | HNG505A | pin hinge oversize | ||
7 | HNG506 | Screw | ||
8 | HNG507 | Bolt | ||
9 | HNG508 | Hinge assembly | 4-door saloon | |
10 | HNG509 | Pin - hinge | ||
* | HNG550 | plate tapping door pillar upper | Photo | |
* | HNG551 | plate tapping door pillar lower | Photo | |
* | HNG552U | plate tapping door upper | Photo | |
* | HNG553U | plate tapping door lower | Photo |

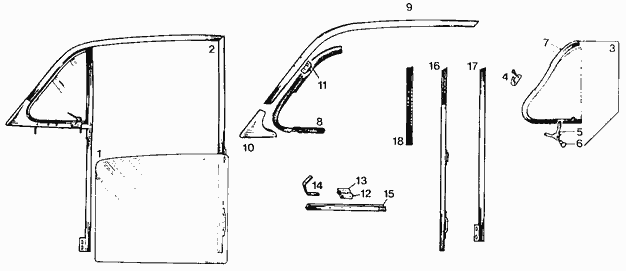

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | VNT101 | Glass - door front | 4-door | |
VNT163 | Glass | 2-door, Conv. Trav. | ||
2 | VNT102 | Ventilator anc channel assy. - RH | 4-door | |
VNT103 | Ventilator anc channel assy. - LH | - | ||
VNT143 | Ventilator anc channel assy. - RH | Convertible | ||
VNT144 | Ventilator anc channel assy. - LH | - | ||
3 | VNT104 | Ventilator assembly - RH | 4-door, Convertible | |
VNT105 | Ventilator assembly - LH | - | ||
VNT152 | Ventilator assembly - RH | 2-door | ||
VNT153 | Ventilator assembly - LH | - | ||
4 | VNT106 | Hinge - lower - RH | ||
VNT107 | Hinge - lower - LH | |||
5 | VNT108 | Fastener - RH | ||
VNT109 | Fastener - LH | |||
6 | VNT110 | Pin | ||
7 | VNT111 | Strip - glazing | ||
8 | VNT112 | Excluder - draught - RH | ||
VNT113 | Excluder - draught - LH | |||
9 | VNT114 | Channel - outer - RH | 4-door saloon | |
VNT115 | Channel - outer - LH | - | ||
VNT154 | Channel - outer - RH | 2-door | ||
VNT155 | Channel - outer - LH | - | ||
VNT145 | Channel - outer - RH | Traveller, Convertible | ||
VNT146 | Channel - outer - LH | - | ||
10 | VNT116 | Capping - corner | 4-door, Conv. Trav. | |
VNT156 | Capping - corner | 2-door | ||
11 | VNT117 | Hinge - ventilator - upper - RH | ||
VNT118 | Hinge - ventilator - upper - LH | |||
12 | VNT119 | Block - lower bearing - inner | ||
13 | VNT120 | Block - lower bearing - outer | ||
14 | VNT121 | Bracket - corner | ||
15 | VNT122 | Channel - lower - RH | 4-door, Conv. Trav. | |
VNT123 | Channel - lower - LH | - | ||
VNT157 | Channel - lower - RH | 2-door | ||
VNT158 | Channel - lower - LH | - | ||
16 | VNT124 | Channel - vertical - rear - RH | 4-door, Conv. Trav. | |
VNT125 | Channel - vertical - rear - LH | - | ||
VNT159 | Channel - vertical - rear - RH | 2-door | ||
VNT160 | Channel - vertical - rear - LH | - | ||
17 | VNT126 | Channel - vertical - front - RH | 4-door, Conv. Trav. | |
VNT127 | Channel - vertical - front - LH | - | ||
VNT161 | Channel - vertical - front - RH | 2-door | ||
VNT162 | Channel - vertical - front - LH | - | ||
18 | VNT128 | Rubber - sealing | ||
Not Illustrated | ||||
VNT201 | Rubber sealing - rear of frame to door R | Photo | ||
VNT202 | Rubber sealing - rear of frame to door L | Photo |

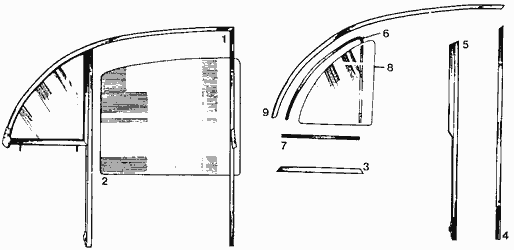

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | VNT129 | Channel assembly - rear - RH | 4-door saloon | |
VNT130 | Channel assembly - rear - LH | |||
2 | VNT131 | Glass | ||
3 | VNT132 | Channel - lower - RH | ||
VNT133 | Channel - lower - LH | |||
4 | VNT134 | Channel - front - vertical - RH | ||
VNT135 | Channel - front - vertical - LH | |||
5 | VNT136 | Channel - rear - vertical | ||
6 | VNT137 | Channel - quarter light - upper (rubber) | ||
7 | VNT138 | Channel - quarter light - lower (rubber) | ||
8 | VNT139 | Glass - quarter light | ||
9 | VNT140 | Channel - outer - RH | ||
VNT141 | Channel - outer - LH |

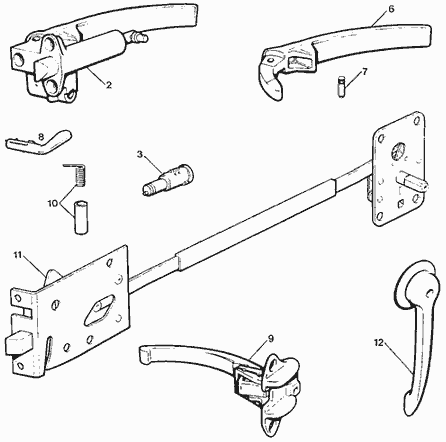

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
2 | DLK101 | Handle assembly - locking - RH | 2-door saloon, Conv. | |
DLK102 | Handle assembly - non-lock. LH | and Traveller | ||
DLK103 | Handle assembly - locking - LH | |||
3 | DLK104 | Barrel assembly - locking | ||
6 | DLK105 | Handle - RH | ||
DLK106 | Handle - LH | |||
7 | DLK107 | Pin - outer handle | ||
8 | DLK108 | Catch - locking - left hand door | ||
DLK109 | Catch - locking - right hand door | |||
11 | DLK119 | Lock assembly - RH | ||
DLK120 | Lock assembly - LH | |||
9 | DLK110 | Handle assembly - locking - RH | 4-door saloon - front | |
DLK111 | Handle assembly - LH | |||
10 | DLK112 | Spring and barrel | ||
11 | DLK115 | Lock assembly - RH | ||
DLK116 | Lock assembly - LH | |||
DLK113 | Handle assembly - RH | 4-door saloon - rear | ||
DLK114 | Handle assembly - LH | |||
11 | DLK117 | Lock assembly - RH | ||
DLK118 | Lock assembly - LH | |||
12 | DLK121 | Handle - remote control | All models | |
Not Illustrated | ||||
ADA3622 | buffer door handle |
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | WWM101 | Regulator - window - RH | All models | |
WWM102 | Regulator - window - LH | |||
WWM103 | Regulator - window - rear - RH | 4-door saloon | ||
WWM104 | Regulator - window - rear - LH | |||
5 | WWM105 | Handle - regulator | ||
6 | WWM106 | Washer - fibre | ||
7 | WWM107 | Screw - handle to regulator | ||
8 | WWM108 | Bolt - regulator to door |

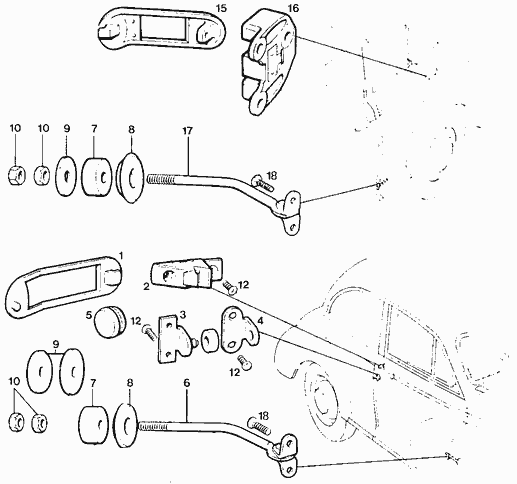

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | DCH101 | Escutcheon | 2-door saloon, Conv. | |
2 | DCH102 | Plate - striker | Traveller | |
DCH112 | Plate - striker | 4-door saloon | ||
3 | DCH103 | Plate - pin - dovetail | ||
4 | DCH104 | Plate - socket | ||
5 | DCH105 | Ferrule - blanking | ||
6 | DCH106 | Arm - door check - RH | ||
DCH107 | Arm - door check - LH | |||
7 | DCH108 | Buffer | ||
8 | DCH109 | Grommet - rubber | ||
9 | DCH110 | Washer | ||
10 | DCH110 | Nut | ||
12 | DCH113 | Screw | ||
15 | DCH114 | Escutcheon - door - front - RH | 4-door saloon | |
DCH115 | Escutcheon - door - front - LH | |||
DCH116 | Escutcheon - door - rear - RH | |||
DCH117 | Escutcheon - door - rear - LH | |||
14 | DCH118 | Plate - socket | ||
16 | DCH119 | Plate - striker and dovetail - RH | ||
DCH120 | Plate - striker and dovetail - LH | |||
17 | DCH121 | Arm - door check - rear | ||
18 | DCH122 | Screw |
