Ill. |
Part Number |
Description |
Remarks |
Info |

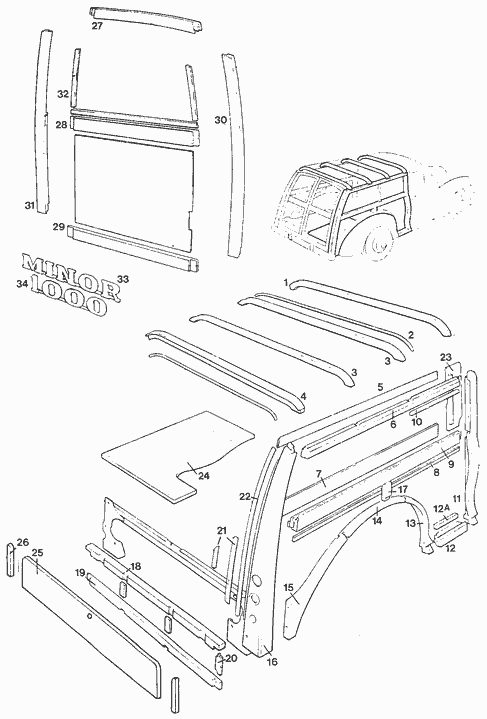

1 | MMT1001 | Rail - top - roof - front |
| |
2 | MMT1002 | Strip - roof - packing | | |
3 | MMT1002 | Strip - roof | | |
4 | MMT1004 | Rail - top - roof - rear | | |
5 | MMT1005 | Capping for cant rail RH | | |
| MMT1006 | Capping for cant rail LH | | |
6 | MMT1007 | Rail - cant RH | | |
| MMT1008 | Rail - cant LH | | |
7 | MMT1009 | Capping for waist rail RH | | |
| MMT1010 | Capping for waist rail LH | | |
8 | MMT1011 | Waist rail fillet RH & LH | | |
9 | MMT1012 | Rail - waist RH | | |
| MMT1013 | Rail - waist LH | | |
10 | MMT1014 | Cant rail fillet RH & LH | | |
11 | MMT1015 | Post - front RH | | |
| MMT1016 | Post - front LH | | |
12 | MMT1017 | Rail - sill RH | | |
| MMT1018 | Rail - sill LH | | |
12A | MMT1019 | Sill rail fillet - RH & LH | | |
13 | MMT1020 | Former - wheel arch - front RH | | |
| MMT1021 | Former - wheel arch - front LH | | |
14 | MMT1022 | Former - wheel arch - top RH | | |
| MMT1023 | Former - wheel arch - top LH | | |
15 | MMT1024 | Former - wheel arch - rear RH | | |
| MMT1025 | Former - wheel arch - rear LH | | |
16 | MMT1026 | Post - rear - corner RH | 1098cc | |
| MMT1027 | Post - rear - corner LH | | |
| MMT1051 | Post - rear - corner RH | 803cc and 948cc | |
| MMT1052 | Post - rear - corner LH | | |
17 | MMT1028 | Wheel arch to waist rail section RH & LH | | |
18 | MMT1029 | Rail - rear body bottom (top portion) | | |
19 | MMT1030 | Rail - rear body bottom (bottom portion) | | |
20 | MMT1031 | Blocks for bottom rail (set) | | |
21 | MMT1032 | Corner post fillet RH | | |
| MMT1033 | Corner post fillet LH | | |
22 | EXT1001 | Rubber extrusion | | |
23 | MMT1034 | Front post capping RH | | |
| MMT1035 | Front post capping LH | | |
24 | MMT1036 | Floorboard assembly rear RH | | |
| MMT1037 | Floorboard assembly rear LH | | |
25 | MMT1038 | Spare wheel compartment cover | | |
26 | MMT1039 | Fillet for spare wheel compartment cover | | |
27 | MMT1040 | Rail - rear door - top RH | | |
| MMT1041 | Rail - rear door - top LH | | |
28 | MMT1042 | Rail - rear door - waist RH | | |
| MMT1043 | Rail - rear door - waist LH | | |
29 | MMT1044 | Rail - rear door - bottom RH | | |
| MMT1045 | Rail - rear door - bottom LH | | |
30 | MMT1046 | Pillar - rear door - hinge RH | | |
| MMT1047 | Pillar - rear door - hinge LH | | |
31 | MMT1048 | Pillar - rear door - shut RH | | |
| MMT1049 | Pillar - rear door - shut LH | | |
32 | MMT1050 | Fillet for glass RH & LH | | |
33 | LOG1001 | Motif "MINOR" | | |
34 | LOG1002 | Motif "1000" | | |
| | | | |
| Not Illustrated | | | |

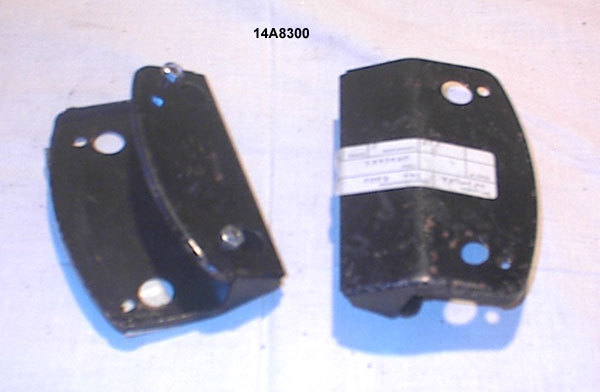

| 14A8300 | Plinth - no.plate light | | Photo |
| AJD1549Z | screw wood frame to front end | | |
| AJD4550Z | screw wood frame to front end | | |
| MMT1053 | Frame - assembled - RH | | |
| MMT1054 | Frame - assembled - LH | | |
| MMT1055 | Door - assembled - RH | | |
| MMT1056 | Door - assembled - LH | | |
Ill. |
Part Number |
Description |
Remarks |
Info |

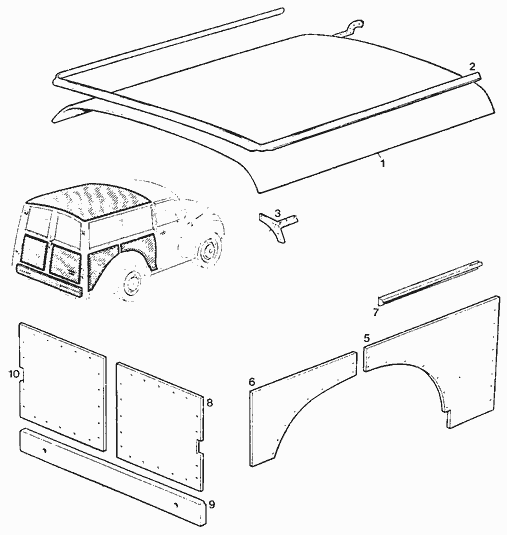

1 | ALY101 | Panel - roof |
| |
2 | ALY102 | Moulding - drip | | |
3 | ALY103 | Bracket - corner - rear RH | | |
| ALY104 | Bracket - corner - rear LH | | |
4 | ALY105 | Bracket - corner - front RH | | |
| ALY106 | Bracket - corner - front LH | | |
5 | ALY107 | Panel - body side - front RH | | |
| ALY108 | Panel - body side - front LH | | |
6 | ALY109 | Panel - body side - rear RH | | |
| ALY110 | Panel - body side - rear LH | | |
7 | ALY111 | Fillet - waist rail capping RH | State type of locking | |
| ALY112 | Fillet - waist rail capping LH | device fitted to window | |
8 | ALY113 | Panel - door RH | | |
9 | CHS272 | Valance - rear | | |
10 | ALY114 | Panel - door LH | | |
| | | | |
| Not Illustrated | | | |
| ADA781 | rubber roof joint | | |
Ill. |
Part Number |
Description |
Remarks |
Info |

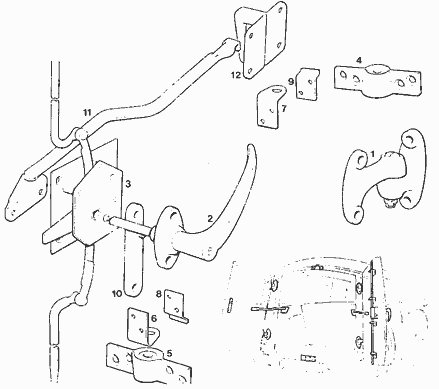

1 | HNG101 | Hinge assembly - top RH |
| |
| HNG102 | Hinge assembly - top LH | | |
| HNG103 | Hinge assembly - bottom RH | | |
| HNG104 | Hinge assembly - bottom LH | | |
* | AAA318 | Bolt hinge rear doors | | |
* | AAA1178 | Ball for hinge | | |
* | AAA1179 | Washer lock | | |
2 | LKG101 | Handle assembly - locking | | |
3 | LKG102 | Device - locking | | |
4 | LKG103 | Socket - locking rod - upper | | |
5 | LKG103 | Socket - locking rod - lower | | |
6 | LKG104 | Plate - locking rod guide - upper and lower | | |
7 | LKG105 | Plate - locking rod guide - centre | | |
8 | LKG106 | Spring - anti-rattle - upper and lower | | |
9 | LKG107 | Spring - anti-rattle - centre | | |
10 | LKG108 | Plate - striker | | |
11 | LKG109 | Check - door - RH | | |
| LKG110 | Check - door - LH | | |
12 | LKG111 | Plate - guide - RH | | |
| LKG112 | Plate - guide - LH | | |
| | | | |
| Not Illustrated | | | |
| LKG500 | Bracket R | | [Info |
| LKG501 | Bracket L | | - - |
| LKG502 | Bracket | | - - |
| LKG503 | Gas strut | | & pic] |
