| Ill. |
Part Number |
Description |
Remarks |
Info |

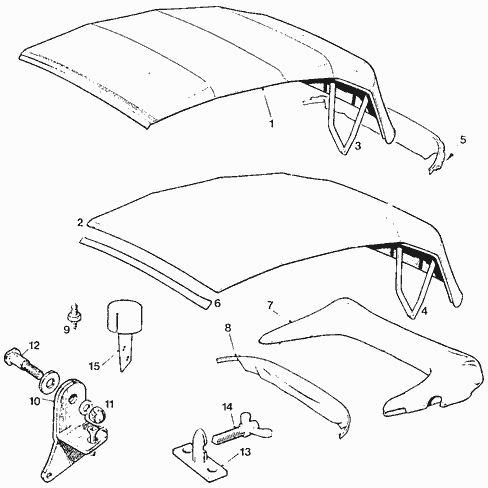

| 1 | CHF101 | Hood - canvas |
Split screen | |
| 2 | CHF102 | Hood - canvas | | |
| 3 | CHF103 | Frame - hood | Split screen | |
| 4 | CHF104 | Frame - hood | | |
| 5 | CHF105 | Rail - finishing - timber | | |
| 6 | CHF106 | Stick - front - timber | Split screen | |
| | CHF107 | Stick - front - timber | | |
| 7 | CHF108 | Cover - hood | | |
| 8 | CHF109 | Cover - rail | | |
| 9 | CHF110 | Stud - 'lift the dot' type | | |
| 10 | CHF111 | Bracket - support - RH | | |
| | CHF112 | Bracket - support - LH | | |
| 11 | CHF113 | Nut - domed | | |
| 12 | CHF114 | Stud | | |
| 13 | CHF115 | Pin - location | | |
| 14 | CHF116 | Screw - wing | | |
| 15 | CHF117 | Finisher - weatherstrip | | |
| | CHF118 | Vinyl hood - various colours | | |
| | | | | |
| | Not Illustrated | | | |
| | CHF119 | Lift the dot female | | |
| | CHF120 | Lift the dot male | | |
| | CHF121 | Press stud fastener female | | |
| | CHF122 | Rubber capping B-post top RH | | |
| | CHF123 | Rubber capping B-post top LH | | |
| | CHF124 | Bush for locating pin | | |
