Seats

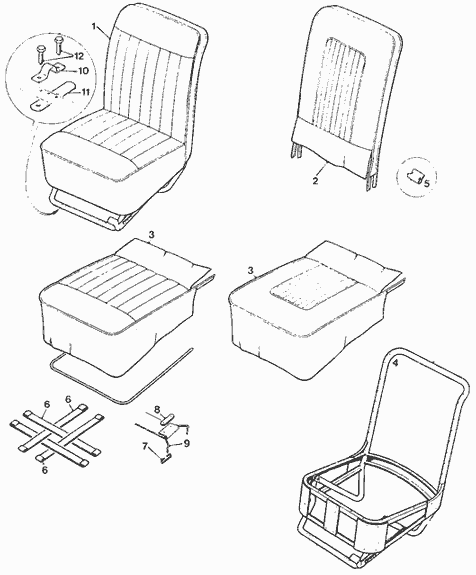

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | Seat - adjustable - driver's side | |||
Seat - non-adjustable - passenger's side | ||||
2 | Cover - squab | |||
3 | Cover - cushion | |||
4 | Frame - adjustable - driver's side | |||
Frame - non-adjustable - passenger's side | ||||
5 | TRM800 | Clip - cover to frame | ||
6 | TRM802 | Webbing - with plate, staple and clip | ||
7 | TRM803 | Staple - strap | ||
8 | TRM804 | Plate - backing - staple | ||
9 | TRM805 | Clip - strap to frame | ||
10 | TRM806 | Clamp - seat leg | ||
11 | TRM807 | Piece - packing | ||
12 | TRM808 | Bolt - fixing |

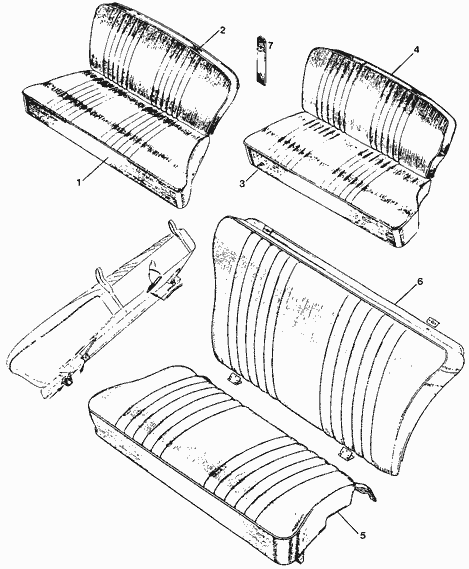

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | Cushion assembly - rear | 2-door sal. and Conv. | ||
2 | Squab assembly - rear | |||
3 | Cushion assembly - rear | 4-door saloon | ||
4 | Squab assembly - rear | |||
5 | Cushion assembly - rear | Traveller | ||
6 | Squab assembly - rear | |||
7 | TRM704 | Tag - rear squab |
Liners

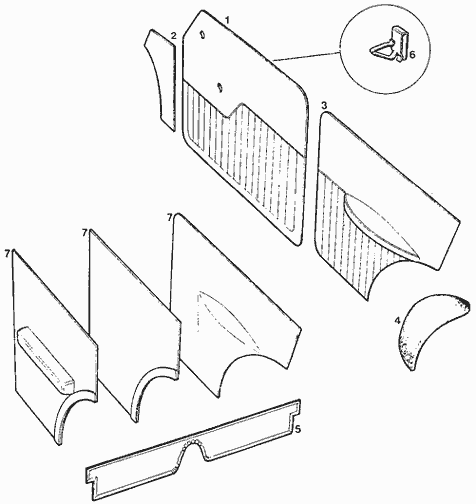

Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | Liner - door | 2-d. saloon, conv. | ||
2 | Liner - front quarter | |||
3 | Liner - rear quarter | |||
4 | Padding - wheel arch | |||
5 | Liner - toe board | |||
6 | TRM702 | Clip - door liner | ||
7 | Liner - rear quarter | |||
Not Illustrated | ||||
AAA4157 | clip door liner | van - pick up |
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | Liner - front door | 4-door saloon | ||
2 | Liner - front quarter | |||
3 | Liner - centre pillar - lower | |||
4 | Liner - centre pillar - upper | |||
5 | Liner - rear door | |||
6 | Liner - rear wheel arch | |||
7 | Liner - heelboard | |||
8 | Liner - rear parcel shelf | |||
9 | Pad - crash - fascia tray | |||
10 | TRM700 | Door pull with backing plate | ||
11 | TRM701 | Capping | ||
12 | TRM702 | Clip - door liner | ||
13 | TRM703 | Clip - centre pillar liner | ||
Not Illustrated | ||||
ADA3594 | Support fachia tray | |||
PT723A | Rubber pad for support fachia tray |
