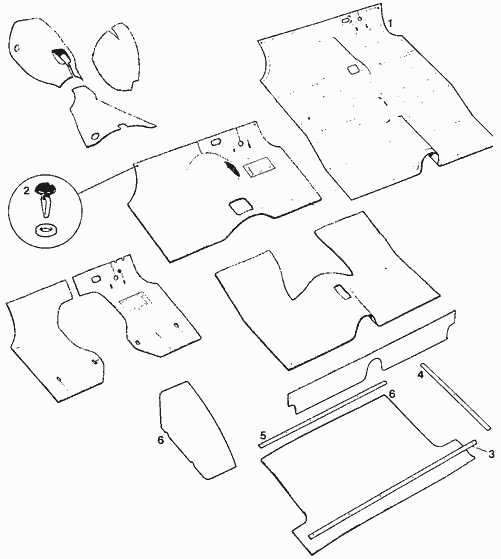

Mats
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | MAT101 | Mat - rubber | Traveller | |
MAT102 | Carpet - set | 803cc 4-door saloon | ||
MAT103 | Carpet - set | 803cc 2-d. sal., Conv. | ||
Traveller | ||||
MAT104 | Carpet - set | 948cc, 1098cc 4-d.sal. | ||
MAT105 | Carpet - set | 948cc, 1098cc 2-d.sal. | ||
Convertible, Traveller | ||||
2 | MAT106 | Button fastener (platic) | ||
3 | MAT107 | Strip - aluminium - front | ||
4 | MAT108 | Strip - aluminium - centre | ||
5 | MAT109 | Strip - aluminium - rear | ||
6 | MAT110 | Cover - rear floor, wheel arches and seat squab - set |

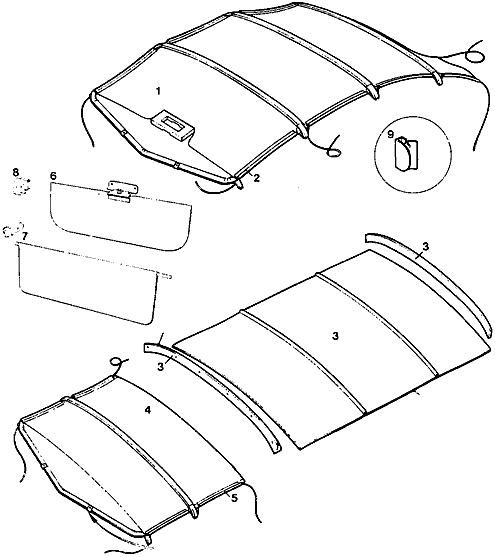

Headlining
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | TRM122 | Headlining - less frame | 2-door and 4-door sal. | |
2 | TRM123 | Headling assembly - complete | ||
3 | TRM124 | Headlining - rear | Traveller | |
4 | TRM125 | Headlining - front | Traveller | |
5 | TRM126 | Headlining assembly - complete | Traveller | |
6 | TRM127 | Visor - sun | 803cc and 948cc | |
7 | TRM128 | Visor - sun | 1098cc | |
8 | TRM129 | Clip - visor retaining | ||
9 | TRM130 | Clip - headlining | ||
Not Illustrated | ||||
TRM122A | wire for headlining | |||
TRM122B | plywood plate for headlining | |||
ADA4374 | rubber blanking sunvisor | |||
GHF713 | clip sunvisor | |||
AB610003 | screw sunvisor |
