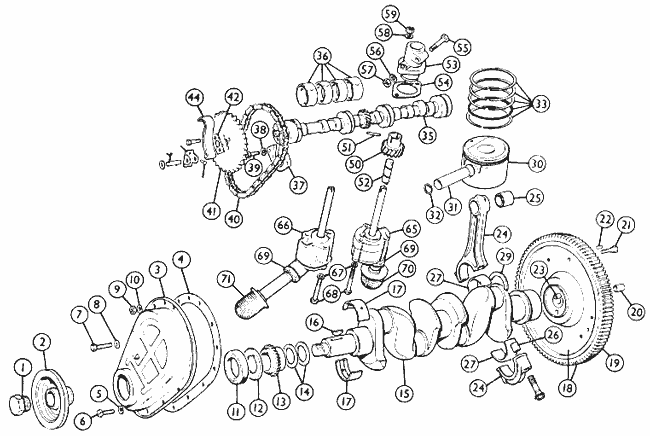

| Ill. |
Varenummer |
Beskrivelse |
Bemærkninger |
Info |
| 1 | 128058 | Crank nut MK1-3 |
| |
| | 155357 | Crank nut MK4-1500 | | |
| 2 | 202465 | Pullex MK1-3 | | |
| 4 | 211126 | Gasket timing cover | | |
| 5 | GHF332 | Washer lock | | |
| 6 | SE605031 | Set screw | | |
| 7 | SH605071 | Bolt | | |
| 8 | GHF332 | Washer lock | | |
| 11 | 100499 | Oil seal | | |
| | UKC1110 | Seal timing cover | | |
| 13 | 100431 | Timing gear crank MK1-3 | | |
| | 119389 | Timing gear crank MK4-1500 | | |
| 14 | 027138 | Shim .006" MK1-3 | | |
| 15 | 307422R | Crankshaft 12/1300 | | |
| | 308737 | Crankshaft 1300 MK4 | | |
| | RKC918 | Crankshaft 1500 | | |
| | RKC918R | Crankshaft 1500 | | |
| 16 | 105115 | Woodruff key | | |
| 17 | RTC1759 | Main bearings STD | | |
| | RTC1753 | Main bearings 1500/MK4/GK | | |
| 19 | 201350 | Ring gear | | |
| 20 | 105143 | Pilot bush | | |
| 25 | 119813 | Bush | | |
| 27 | 138211 | Bearing big end STD | | |
| | RTC1754 | Bearing big end STD 1500 | | |
| 29 | BHM1366 | Thrust washer STD | | |
| | BHM1366/5 | Thrust washer +.005 | | |
| | 104820 | Thrust washer 1200> | | |
| | 144781 | Thrust washer STD | | |
| 30 | 142659 | Piston set STD 1200 | | |
| | 155907 | Piston set 1300 | | |
| | 155169 | Piston set STD 1500 | | |
| 33 | BHM1175 | Piston ring set | | |
| | BHM1175.02 | Piston ring set .020 | | |
| | 129639 | Piston ring set STD 1200 | | |
| 35 | 212359 | Camshaft GE 1300 | | |
| | 212164 | Camshaft 1300 FD/FH>25000 | | |
| | RKC3305 | Camshaft 1500 | | |
| 36 | VPC978 | Bearings camshaft | | |
| 40 | 105131 | Chain timing | | |
| 41 | 035960 | Gear timing cam | | |
| 44 | 042425 | Tensioner timing chain | | |
| 51 | 500974 | Peg | | |
| 52 | 104861 | Drive shaft | | |
| 53 | 121530 | Pedestal distributer | | |
| 65 | GLP145 | Oil pump | | |
| 66 | GLP118 | Oil pump | | |
