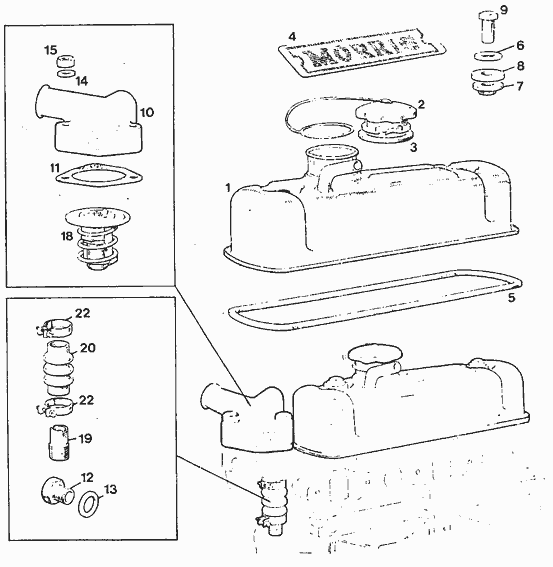

Valve Cover
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
1 | 10M211 | Cover - valve rocker | ||
9M212 | - | |||

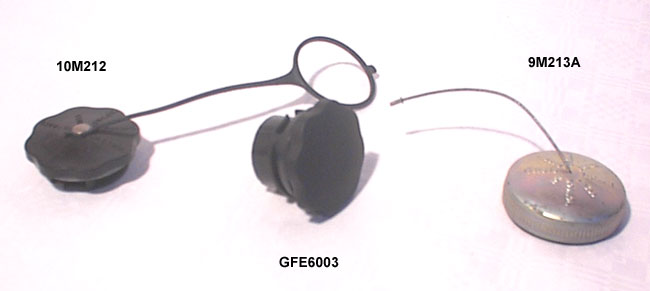

2 | 10M212 | Cap - oil filler | Photo | |
9M213A | Cap - oil filler metal | Photo | ||
GFE6003 | Cap - oil filler vented | Photo | ||
3 | 10M213 | Washer | ||
4 | 10M214 | Sticker - name - 'Morris' | ||
10M214A | Plate - name - 'Morris' | |||
MMK1002 | Plate & sticker kit | Photo | ||
5 | 10M215 | Gasket | ||
6 | 10M216 | Piece - distance | ||
7 | 10M217 | Bush - rubber | ||
8 | 10M218 | Washer - cap | ||
9 | 10M219 | Nut - cap | ||
10 | 10M220 | Elbow - water outlet | ||
11 | 10M221 | Gasket | ||
12 | 10M222 | Plug - thermal transmitter boss | ||
13 | 10M223 | Washer | ||
14 | 10M224 | Washer | ||
15 | 10M225 | Nut | ||
18 | 10M226 | Thermostat - 82° | ||
10M226A | Thermostat - 88° | |||
10M226B | Thermostat - 92° | |||
19 | 10M227 | Adaptor - by-pass | ||
20 | 10M228 | Hose - by-pass | ||
22 | 10M229 | Clip |

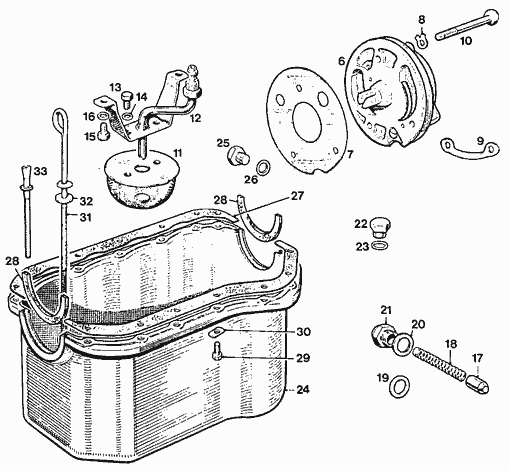

Oil Sump
Ill. | Part Number | Description | Remarks | Info |
---|---|---|---|---|
6 | 10M230 | Pump - oil | ||
7 | 10M231 | Gasket | ||
8 | 10M232 | Washer - lock | ||
9 | 10M233 | Plate - locking | ||
10 | 10M234 | Screw | ||
11 | 10M235 | Strainer - oil | ||
8M268 | - | |||
12 | 10M236 | Pipe - oil suction (with bracket) | ||
8M269 | - | |||
13 | 10M237 | Screw - bracket to strainer | ||
14 | 10M238 | Washer - shakeproof | ||
15 | 10M237 | Screw - bracket to bearing cap | ||
16 | 10M238 | Washer - shakeproof | ||
17 | 10M239 | Valve - oil release | ||
18 | 10M240 | Spring - valve | ||
19 | 10M241 | Washer - fibre | Use 10M242 | |
20 | 10M242 | Washer - copper | ||
21 | 10M243 | Nut - cap - oil release valve | ||
22 | 10M244 | Plug - oil priming | ||
23 | 10M245 | Washer - copper | ||
24 | 10M246 | Sump - oil | ||
25 | 10M247 | Plug - drain | ||
26 | 10M248 | Washer - copper | ||
27 | 10M249 | Gasket - sump | ||
28 | 10M250 | Seal - oil - main bearing cap | ||
29 | 10M251 | Screw - sump to crankcase | ||
30 | 10M252 | Washer | ||
31 | 10M253 | Rod - oil dipper | ||
32 | 10M254 | Washer - rubber | ||
33 | 10M255 | Tube - oil dipper rod |
