| Ill. |
Part Number |
Description |
Remarks |
Info |

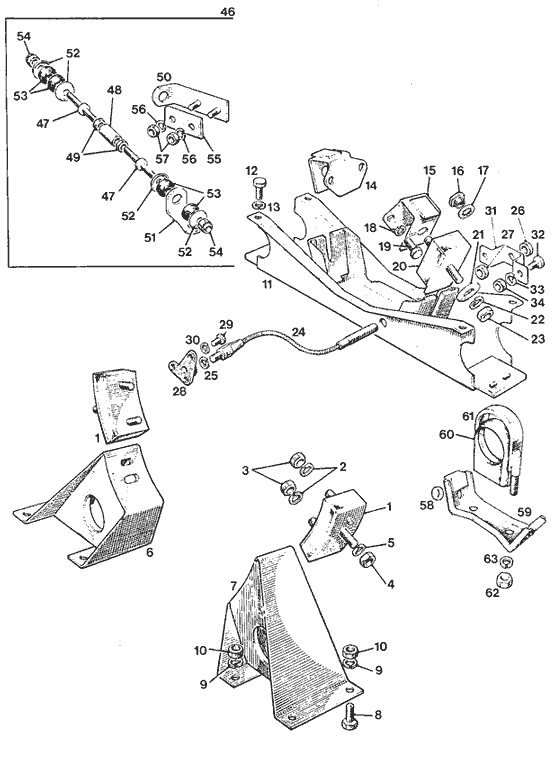

| 1 | MNT101 | Block - engine mounting - front | | |
| 2 | MNT102 | Washer - spring | | |
| 3 | MNT103 | Nut | | |
| 4 | MNT104 | Nut | | |
| 5 | MNT105 | Washer - spring | | |
| 6 | MNT106 | Bracket - mounting - front R/H | | |
| 7 | MNT107 | Bracket - mounting - front L/H | | |
| 8 | MNT108 | Bolt | | |
| 9 | MNT109 | Washer - spring | | |
| 10 | MNT110 | Nut | | |
| 11 | MNT111 | Cross member - engine mounting - rear | | |
| * | MNT111A | Cross member - engine mounting - rear | Van - Pick up | |
| 12 | MNT112 | Screw | | |
| 13 | MNT113 | Washer - spring | | |
| 14 | MNT114 | Bracket - packing - rear mounting R/H | | |
| 15 | MNT115 | Bracket - packing - rear mounting L/H | | |
| 16 | MNT116 | Nut | | |
| 17 | MNT117 | Washer - spring | | |
| 18 | MNT118 | Screw | | |
| 19 | MNT119 | Washer - spring | | |
| 20 | MNT120 | Block - rear mounting (rubber) | | |
| 21 | MNT121 | Washer - plain | | |
| 22 | MNT122 | Washer - spring | | |
| 23 | MNT123 | Nut | | |
| 24 | MNT124 | Cable - engine steady | | |
| 25 | MNT125 | Washer - spring | | |
| 26 | MNT126 | Nut | | |
| 27 | MNT127 | Nut | | |
| 28 | MNT128 | Bracket - cable to gearbox | | |
| 29 | MNT129 | Screw | | |
| 30 | MNT130 | Washer - spring | | |
| 31 | MNT131 | Bracket - cable to frame | | |
| 32 | MNT132 | Screw | | |
| 33 | MNT133 | Washer - spring | | |
| 34 | MNT134 | Nut | | |
| 46 | MNT146 | Kit - anti-judder | | |
| 47 | MNT147 | Tie rod - engine | | |
| 48 | MNT148 | Nut - adjusting | | |
| 49 | MNT149 | Nut | | |
| 50 | MNT150 | Bracket - anchor to body | | |
| 51 | MNT151 | Bracket - anchor to engine | | |
| 52 | MNT152 | Retainer (rubber) | | |
| 53 | MNT153 | Buffer (rubber) | | |
| 54 | MNT154 | Nut | | |
| 55 | MNT155 | Plate - reinforcing - body bracket | | |
| 56 | MNT156 | Washer - spring | | |
| 57 | MNT157 | Nut | | |
| 58 | MNT158 | Washer - plain | | |
| 59 | MNT159 | Channel - rear mounting (rubber) | | |
| 60 | MNT160 | Gearbox extension - mounting (rubber) | | |
| 61 | MNT161 | Retainer - gearbox extension | | |
| 62 | MNT162 | Nut | | |
| 63 | MNT163 | Washer - spring | | |
