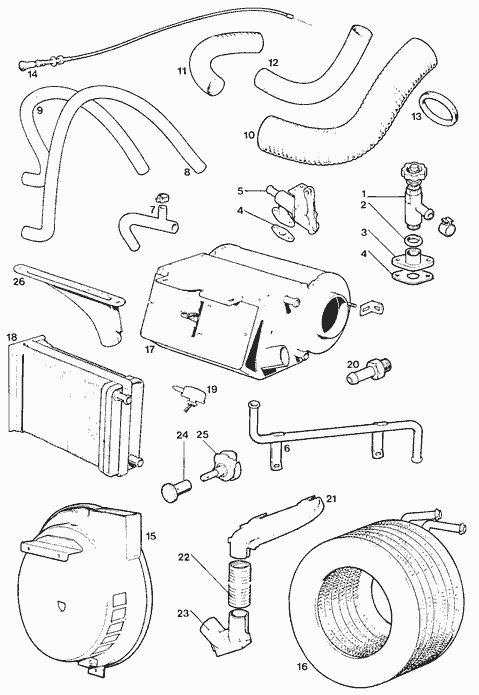

Ill. |
Part Number |
Description |
Remarks |
Info |
1 | HTR101 | Valve - heater |
| |
2 | HTR102 | Washer | | |
3 | HTR103 | Plate - valve | | |
4 | HTR104 | Gasket | | |
5 | HTR105 | Valve - heater | | |
6 | HTR106 | Pipe - outlet | | |
7 | RAD109 | Hose - bottom | | |
8 | HTR108 | Hose - outlet | | |
* | HTR108A | Grommet for heater water hose | | |
9 | HTR109 | Hose - inlet | | |
10 | HTR110 | Hose - air intake | | |
11 | HTR111 | Hose - demister | | |
12 | HTR111 | Hose - demister | | |
13 | HTR112 | Grommet - air intake through dash | | |
14 | HTR113 | Cable - heater valve control | | |
* | 24G1482K | Fastener cable to harter tap | | |
15 | HTR114 | Cover - front | | |
16 | HTR115 | Radiator | | |
17 | HTR116 | Heater assembly | | |
18 | HTR117 | Radiator | | |
19 | HTR118 | Switch | | |
20 | HTR119 | Connector - hose to radiator | | |
21 | HTR120 | Duct - demister - RH | | |
| HTR121 | Duct - demister - LH | | |
22 | HTR122 | Hose - demister | | |
23 | HTR123 | Adaptor - hose - 2-way | | |
24 | HTR124 | Knob | | |
25 | HTR125 | Switch | | |
26 | HTR126 | Duct - demister - RH | | |
| HTR127 | Duct - demister - LH | | |
| | | | |
* | 17H819 | Casing for blower motor in engine bay | | |
