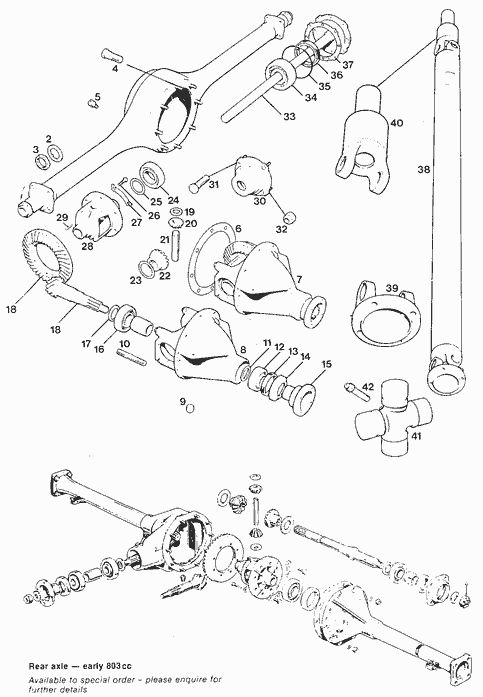

Ill. |
Part Number |
Description |
Remarks |
Info |
1 | DIF101 | Case assembly - axle |
| |
* | DIF201 | Bracket on rear axle for spring RH | |
Photo |
* | DIF202 | Bracket on rear axle for spring LH | |
Photo |
2 | DIF102 | Washer - lock | | |
3 | DIF103 | Nut - bearing retainer - RHT | | |
| DIF104 | Nut - bearing retainer - LHT | | |
4 | DIF105 | Stud | | |
5 | DIF106 | Breather | | |
6 | DIF107 | Gasket - axle case | | |
7 | DIF108 | Differential assembly | 9x41 teeth - 4.55:1 | |
| DIF109 | Differential assembly | 9x38 teeth - 4.22:1 | |
8 | DIF110 | Carrier assembly | For DIF108 | |
| DIF111 | Carrier assembly | For DIF109 | |
9 | DIF112 | Plug - oil filler and drain | | |
* | DIV131 | Tool for drain plug rear axle | | |
10 | DIF113 | Stud - bearing cap | | |
11 | DIF114 | Shim - outer bearing .003" .076mm | | |
| DIF115 | Shim - outer bearing .005" .127mm | | |
| DIF116 | Shim - outer bearing .010" .254mm | | |
| DIF117 | Shim - outer bearing .020" .508mm | | |
12 | DIF118 | Bearing - pinion outer | | |
13 | DIF119 | Seal - oil - pinion bearing | | |
14 | DIF120 | Cover - dust | | |
15 | DIF121 | Flange - universal joint | | |
16 | DIF122 | Bearing - pinion inner | | |
17 | DIF123 | Washer - thrust .118" 2.997mm | | |
| DIF124 | Washer - thrust .120" 3.048mm | | |
| DIF125 | Washer - thrust .122" 3.099mm | | |
| DIF126 | Washer - thrust .126" 3.200mm | | |
| DIF127 | Washer - thrust .128" 3.251mm | | |
| DIF128 | Washer - thrust .130" 3.302mm | | |
18 | DIF129 | Crown wheel and pinion | 9x41 teeth - 4.55:1 | |
| DIF130 | Crown wheel and pinion | 9x38 teeth - 4.22:1 | |
19 | DIF131 | Washer - thrust - pinion | | |
20 | DIF132 | Pinion - differential | | |
21 | DIF133 | Pin - pinion | | |
22 | DIF134 | Wheel - differential | | |
23 | DIF135 | Washer - thrust - differential wheel | | |
24 | DIF136 | Bearing - differential | | |
25 | DIF137 | Washer - bearing .002" .051mm | | |
| DIF138 | Washer - bearing .003" .076mm | | |
| DIF139 | Washer - bearing .004" .102mm | | |
| DIF140 | Washer - bearing .010" .254mm | | |
26 | DIF141 | Bolt - crown wheel to differential | | |
27 | DIF142 | Washer - tab | | |
28 | DIF143 | Cage - differential | | |
29 | DIF144 | Peg - pinion pin | | |
30 | DIF145 | Hub - assembly | | |
31 | SUS175 | Stud - wheel | | |
32 | SUS176 | Nut - wheel stud | | |
33 | DIF146 | Half shaft | | |
34 | DIF147 | Bearing - hub | | |
35 | DIF148 | Ring - oil seal (rubber) | | |
36 | DIF149 | Seal - oil - hub | | |
37 | DIF150 | Gasket - axle shaft | | |
* | DIF156 | Kit - wheel bearing | | |
38 | DIF151 | Shaft assembly - propeller | | |
* | DIF151A | Bolt propeller shaft to differential | | |
39 | DIF152 | Flange - yoke | | |
40 | DIF153 | Sleeve - yoke | | |
41 | DIF154 | Universal joint | | |
42 | DIF155 | Lubricator | | |
| | | | |
* | 101434 | Bearing rear wheel hub | Series MM | |
* | 101438 | Oil seal rear wheel hub | - | |
* | 101850 | Oil seal pinion bearing old type rear axle | - | |

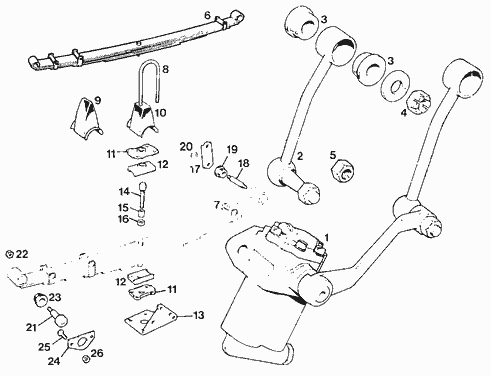

Ill. |
Part Number |
Description |
Remarks |
Info |
1 | SUS700 | Absorber - shock - RH |
| |
| SUS701 | Absorber - shock - LH | | |
2 | SUS702 | Link - shock absorber | | |
3 | SUS703 | Bush - shock absorber link | | |
4 | SUS704 | Nut - link to frame | | |
5 | SUS705 | Nut - link to arm | | |
6 | SUS706 | Spring - 5-leaf | Later saloons and conv. | |
7 | SUS707 | Spring - 7-leaf | Traveller | |
8 | SUS708 | 'U'-bolt - 7-leaf spring | | |
| SUS709 | 'U'-bolt - 5-leaf spring | | |
9 | | Buffer - earlier type | Use SUS710 | |
10 | SUS710 | Buffer | | |
11 | SUS711 | Plate - locating | | |
12 | SUS712 | Pad - seating - rubber | | |
13 | SUS713 | Bracket - shock absorber RH | | |
| SUS714 | Bracket - shock absorber LH | | |
14 | SUS715 | Bolt - dowel | | |
15 | SUS716 | Piece - distance | | |
16 | SUS717 | Nut | | |
17 | SUS718 | Plate - rear shackle | | |
18 | SUS105 | Pin - rear shackle | | |
19 | SUS104 | Bush - rear pin | | |
20 | SUS107 | Nut - pin | | |
21 | SUS722 | Pin - front shackle | | |
22 | SUS705 | Nut - pin | | |
23 | SUS104 | Bush - front pin | | |
24 | SUS723 | Plate - front bracket | | |
25 | SUS724 | Bolt - plate | | |
26 | SUS725 | Nut | | |
| | | | |
| Not Illustrated | | | |
| GSA155 | Shock absorber | Van, Pick-up | |
| ACB8871 | Bush rubber shock absorber | - | |
| AAA2368 | Bush steel shock absorber | - | |
| AAA2369 | Bush steel shock absorber | - | |
| AJD6820Z | Bolt shock absorber top | - | |
| PWZ105 | Washer | - | |
| AJD7232 | Washer | - | |
| LWZ206 | Spring washer | - | |
| AJD8106Z | Nut | - | |
| ACA5202 | Bracket for shock absorber | - | |
| SUS707V | Spring 7-leaf | - | |
| AAA3627 | Bush rubber front eye rear spring | - | |
| SUS148 | Nut front of rear spring | - | |
| AAA1383 | Pin for rear shock absorber link to chassis | | |
| AJD8106Z | Nut for U-bolts | | |
