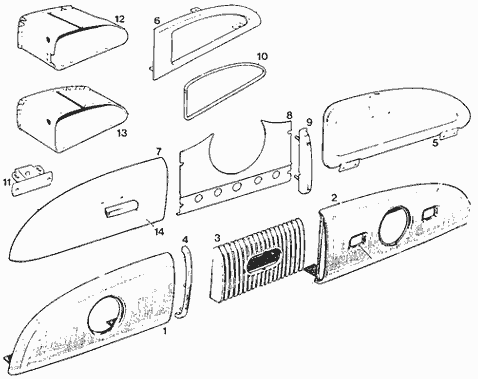

Glovebox
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | DSH101 | Lid - glove box | 803cc early | |
| 2 | DSH102 | Panel - instrument | ||
| 3 | DSH103 | Finisher - fascia - centre | ||
| 4 | DSH104 | Finisher - chromium | ||
| 5 | DSH105 | Lid - glove box - RH | ||
| DSH106 | Lid - glove box - LH | |||
| 6 | DSH107 | Surround - glove box - RH | ||
| 7 | DSH108 | Lid - glove box - LH | ||
| 8 | DSH109 | Finisher - facia - centre | ||
| 9 | DSH110 | Finisher - chromium plated | ||
| 10 | DSH111 | Insert - glovebox surround | ||
| 11 | DSH112 | Catch - magnetic | ||
| DSH113 | Glove box - RH | 803cc | ||
| DSH114 | Glove box - LH | |||
| 12 | DSH115 | Glove box - RH | 948cc | |
| DSH116 | Glove box - LH | |||
| 13 | DSH117 | Glove box - RH | 1098cc | |
| DSH118 | Glove box - LH | |||
| 14 | DSH119 | Handle - glovebox lid | ||
| Not Illustrated | ||||
| BDH4144 | Buffer for glove box lid | |||
| ADA1809 | Clip for glove box | |||
| PMZ308 | Screw for hinge glove box lid |

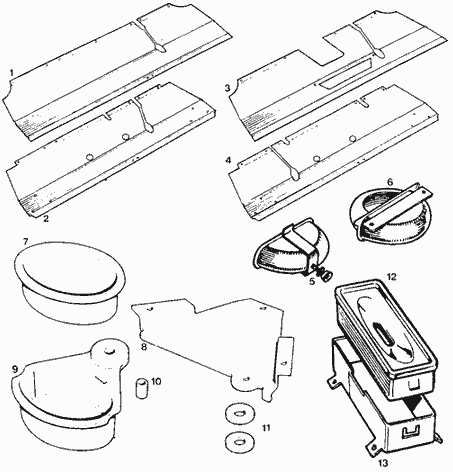

Trays
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | FTS101 | Tray - fascia | ||
| 2 | FTS102 | Tray - fascia | ||
| 3 | FTS103 | Tray - fascia | ||
| 4 | FTS104 | Tray - fascia | ||
| 5 | FTS105 | Ashtray | Early 803cc | |
| 6 | FTS106 | Ashtray | Late 803cc and 948cc | |
| 7 | FTS107 | Ashtray | 1098cc | |
| 8 | FTS108 | Shield - RH | ||
| FTS109 | Shield - LH | |||
| 9 | FTS110 | Case | ||
| 10 | FTS111 | Tube - distance | ||
| 11 | FTS112 | Washer - fibre | ||
| 12 | FTS113 | Ashtray - tunnel | ||
| 13 | FTS114 | Holder - ashtray |

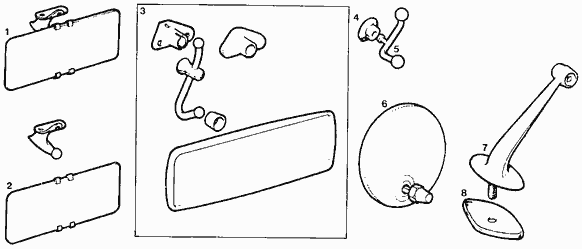

Mirrors
| Ill. | Part Number | Description | Remarks | Info |
|---|---|---|---|---|
| 1 | MIR101 | Mirror - complete | ||
| * | MIR101A | Arm for MIR101 | ||
| 2 | MIR102 | Mirror | ||
| 3 | MIR103 | Mirror assembly - complete | ||
| 4 | MIR104 | Pad - suction | ||
| 5 | MIR105 | Arm | ||
| 6 | MIR106 | Mirror assembly - wing | ||
| 7 | MIR107 | Arm - mirror | ||
| 8 | MIR108 | Washer - rubber | ||

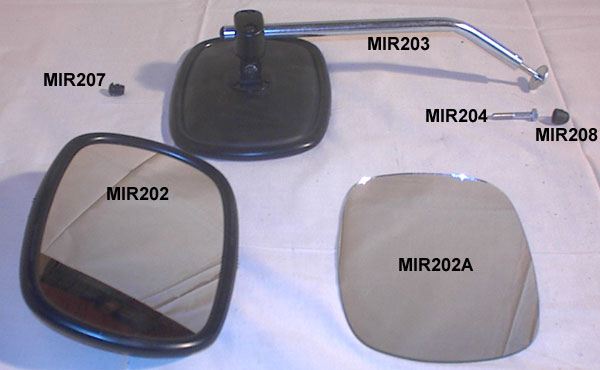

| * | MIR202 | Mirror - side | Van, Pick-up | Photo |
| * | MIR202A | Glass mirror | - | Photo |
| * | MIR203 | Arm mirror with fixing | - | Photo |
| * | MIR204 | Bolt mirror | - | Photo |
| * | MIR207 | Rubber blanking | - | Photo |
| * | MIR208 | Cover for bolt | - | Photo |
